Top camping house company for mining factory

Top camping house company for mining factory
  • Top camping house company for mining factory

Top camping house company for mining factory

...
Inquire Online
Get the latest price
Quantity Needed:
Pieces
E-mail:

Overview
Quick Details
Combo Set Offered:
≥6
Place of Origin:
Shandong, China
Brand Name:
Lida
Model Number:
002
Product name:
Keywords:
low cost prefabricated house
Frame Structure:
square steel tube or C channel or H-section steel
Wall and Roof:
Rock wool/Glass wool/EPS/PU sandwich panel
After Sales Service:
15 Years
Fireproof:
2-4 hours
Moveable/relocatable:
avaialble, with or without steel chassis
Steel anti-rust treatment:
painted or galvanized
House size:
customized
Installation:
supervisor guiding installation is available
Supply Ability
Supply Ability:
50000 Square Meter/Square Meters per Month prefab hobbit house
Video Description

Low Cost Prefabricated House Camp For The Philippines

Product Description

Brief Description

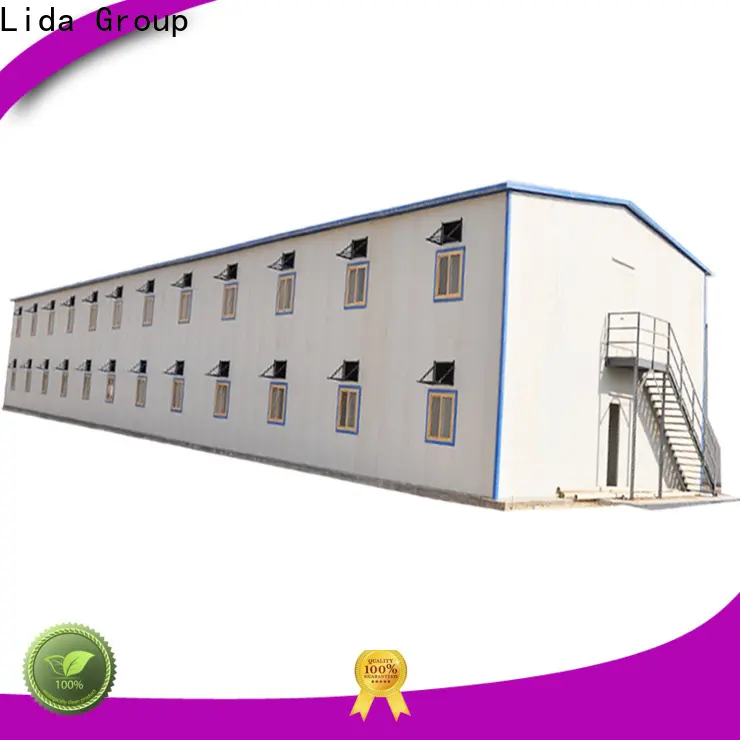

Prefabricated camp house is a Green economy building system, which is formed by the main structure (Square steel tube for column, C channel steel for roof turss and purlin), roof and wall system (using sandwich panel), door and window system. Because of its advantages, like fast production, fast installation, low cost, prefabricated camp house is widely used as labor camp, refugee camp, staff camp, mining camp, dormitory, accommodation house, toilet and shower building, laundry, kitchen and dining/mess/canteen hall, recreation hall, mosque/prayer hall, site office, clinic, guard house, etc..





Advantages



1) Size is customized, design according to requirements.

2) Service life is up to 15 years.

3) Cost effective, the average price is from USD 60/sqm to USD 120/sqm.

4) Fast construction, from production to finishing installation, only need several months.

5) Green and Environmental, energy-saving, anti-fire, anti-earthquake, water proof.



Installation

First type-build on concrete strip foundation

Top camping house company for mining factory-1



Second type-house is with steel chassis, put house on concrete blocks

Top camping house company for mining factory-3



 Component Specification

Type With or without steel chassis

Type one: without steel chassis, build on concrete strip foundation

Type two: with steel chassis, the building will be put on concrete blocks

Story One storey or two storey or three storey are available
Frame system Steel  column Q235 Steel, 100*100*2.5 square tube, alkyd painting, twice primer paint & twice finish paint
Steel roof truss C100*40*15*2.0, welding and galvanized
Roof and wall purlin C100*40*15*2.0, galvanized
Cross bracing Q235 Steel, L40*3 angle steel, alkyd painting, twice primer paint & twice finish paint
Chemical bolt M16, chemical bolt
Ordinary bolt 4.8S, galvanized
Steel chassis or 1st floor system Main beam HN250*125*5.5*8, Q235 Steel, alkyd painting, twice primer paint & twice finish paint
Secondary beam C100*40*15*2.0 galvanized
Floor structure board  18/20mm plywood and fiber cement board
Flooring PVC floor leather and ceramic tiles are available
Wall and Roof system Wall panel

Sandwich panel: Rock wool, Glass wool, EPS, PU are available

Thickness: 50mm, 75mm, 100mm, 150mm, 200mm are available

Roof panel

Sandwich panel: Rock wool, Glass wool, EPS, PU are available

Thickness: 50mm, 75mm, 100mm, 150mm, 200mm are available

Ceiling system Dry room 600*600*6mm gypsum board,with framework
Wet room 600*600*5mm calcium silicate board, with framework
Door and window system Door Fire resistant steel single/double door, emergency door with panic bar, aluminum glass door, MDF door are available
Window PVC, Aluminum sliding window with single/double glazed glass, with mosquito screen, with louver are available
Electric and Plumbing system Electric units Electric wire, conduit, socket, switch, light, distribution box
Sanitary units Shower, closestool, basin, water pipe
Packaging & Shipping

Top camping house company for mining factory-5



Top camping house company for mining factory-7





Our Services

1) Professional sales team: all staff are bachelor and master, abroad team in Saudi Arabia, Qatar, Dubai, Kuwait, Maldives, Malaysia, Sri lanka, etc., provide the best communication.

2) Professional engineers team: all staff are master and doctor, provide the best solution.

3) Professional fabrication: all workers are through professional training, provide the quality guarantee products.

4) Professional installation team: supervisors guide installation from 2004 with rich experience.

5) Turnkey is also available for some projects.

Company Information

Brief introduction:



Established in 1993, LIDA Group -Weifang Henglida Steel Structure Co., Ltd is one of the biggest manufacturer of prefabricated building in China, We have been awarded ISO9001-2000, CE and SGS certficates.

750 employees, including 50 engineers and 200 workers in charge of supervising overseas projects.

83000sqm meters of factory space.

5 production lines for our prefabricated house series.

5 production lines for our container house series.

3 production lines for our steel structure warehouse/workshop series

1 production line for our light steel Villa series



Our social responsibility



Everybody knows there was a big disaster "5-12 earthquake" in SiChuan, China in 2008. Thousands of people are injured, died and lost their homes.


Once the disaster happened, we go to talk with government immediately to express the wishes of providing our support. We confirmed the solution together in the shortest time, and start the work
immediately.



1) Stopped all commercial orders production.
2) 24 hours a day, 7 days a week, all production capacity support for decreasing the disaster damage.
3) Chairman lead 100 man installation team going to the site immediately.



After 3 months hard work, 91000sqm building area, 1626 unit prefab house stand next to the mountain!



The students back to school, the victims of disaster got homes, the smile appear on their face again. A friend in need is a friend indeed, although the physical work is hard, but our hearts are full of joy!



Top camping house company for mining factory-9



Top camping house company for mining factory-11



Our Team

Top camping house company for mining factory-13



Customer Visit



Top camping house company for mining factory-15



Finished Project

 Top camping house company for mining factory-17



Top camping house company for mining factory-19



Top camping house company for mining factory-21



Production line



Top camping house company for mining factory-23



Certificate



Top camping house company for mining factory-25



Top camping house company for mining factory-27



FAQ



Q: Are you factory or trading company?

A: Our Lida Group have main factory named Weifang Henglida Steel structure Co., Ltd., which is in Weifang city. Qingdao Lida construction Facility Co., Ltd. is in Qingdao city. Shouguang Lida Prefab House Factory is in Shouguang city, all of them are in Shandong province.



Q: How about your production capacity?

A: Pre engineered steel structure building (warehouse/workshop/hangar/shed/high rise apartment): 50000 sqm monthly. Prefabricated house (portacabin/labor camp/site office): 100000 sqm monthly. Prefab affordable house (low cost family/residential/refugee): 4200 units monthly. Flat pack container house: 800 units monthly. Light steel villa: 10000 sqm monthly.



Q: How about your quality control?

A: We have got certificate ISO9001:2015, certificate CE EN 1090. Products processing through cutting, bending, welding, shot blasting, ultrasonic testing, packing, storing, loading to ensure no quality defects.



Q: Is third party inspection available?

A: SGS, BV, TUV, etc. are available, it is according to client requirement.



Q: How about your delivery time?

A: Generally within 30 days, it is according to order quantity, partial shipment is allowed for big order.



Q: What about the installation?

A: We'll provide the detailed installation drawing, supervisors guiding installation is available. We can do turnkey job for some kind of projects.



Q: How to ensure the product you supply is what we want exactly?

A: Before placing order, our sales and engineers team will provide you the suitable solution according to your requirements. Proposal drawing, Shop drawing, 3D drawing, Materials photos, Finished projects photos are available, which will help you understand the solution we provided deeply.

The application of this product used in the building projects meets the following needs: the function required by projects, and the durability proper for the environmental conditions. Its appearance makes it compatible with the surrounding area. The product is highly valued for its constantly improved performance, making it perfectly suitable for innovative and future-oriented buildings. Its appearance makes it compatible with the surrounding area.

Lida Group camping house is well-controlled in every detail. It does not contain lead that poses health risks
Customize camping house can meet your design style by different colors, patterns, textures, thicknesses, and etc. Adopting an intelligent constant current driver, it has no flicker problem
Lida Group camping house is designed based on the results of the in-depth survey of global market needs. The product is certified under CCC, TUV, CE, ROHS, UL, DLC, etc
Lida Group camping house is precision-designed with the of our professionals with sharp observation. Constructed with top Philips 5050 or 3030 chips, it features high luminous efficiency
The finest materials and advanced technology are applied in the production of Lida Group camping house. This product is constructed with an over current protection function
The product has excellent impact toughness. Its heavy metal materials are able to resist impulse load and shock load without cracking. It has a wide light beam angle, which offers enough brightness for certain areas
