Container House
Home  > new category  > Container House  >

Use Store Cabin Shed House Foldable Container Office Shop

Use Store Cabin Shed House Foldable Container Office Shop

Add success, do you want to check your shopping cart?

Quick Details
Place of Origin:
Shandong, China
Brand Name:
Hotel, House, Kiosk,Booth, Office, Sentry Box,Guard House, Shop, Toilet, Villa, Warehouse, Workshop,Plant
Container Office Shop:
Office shop
Supply Ability
Supply Ability:
80 Set/Sets per Month

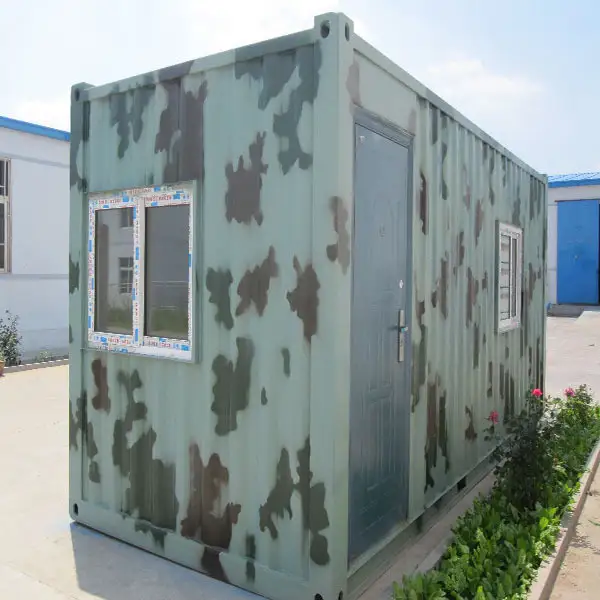

   Container Office Shop

Dimensions and Weight

 20 ft

Inner length /external length :5.81m/6.06m

Inner width /external width: 2.188m/2.438m

Inner height/external height:2,410m/2.591m


Weight: 2000kg per uni

Steel framework


 Material: steel material Q234, thickness: 3.5mm,for top beam frame. Base beam frame and column.

 Surface working: epoxy painting,two bottom and two surface.

 Fittings: 8 standard container corner mould fittings PVC standard rainwater pipe

 Forklift openings: size 100*250mm, distance is 1200mm




External wainscot: Flat galvanized color steel sheet, 0.5mm thickness

 Floor structure: Girder made of 3.5mm steel. The purlin is C section steel. dimension 60x40x1.5mm.

 Warm proof Insulation layer: 75mm rock wool

 18mm  plywood

 1.5mm PVC floor leather for living rooms floor;





 Roof exterior layer: 1.2mm steel plate with epoxy painting

 Warm proof insulation filling: 75mm rockwool between C section purlins;

 Inner wainscot: 8mm OSB board with 12mm PVC decoration board.

 Roof water drain: 4 PVC rainwater pipes in the corner pillars, diameter 50mm




Panel width: 1150mm; panel total thickness: 75mm, five panels fit into the long side and two panels fit into the short side.


 Common room wall: 75mm rockwool 0.4/0.4mm Galvanized

 steel on both side , Desity of Rockwool: 120Kg/m3

 Galvanize window opening on the wall if needed.



External door: Insulated with opening dimension 950*2100mm, furnished with lock

 with 3keys. Inner door: Insulated steel door.




 Window material: PVC window with fly screen. 5mm glass.


Electrical fittings option


Electrical wire, 2.5mm2 for lighting system, and 4mm2 for AC units.

 Main outlet and input industrial socket with 32A.

 3 pcs 16A five hole universal socket.

 2 pc double tube fluorescent lamp, 220V,50-60HZ

 1 pc Single Switch, Honyar brand, with junction box

 1 pc Electrical distribution box, box+breakers+earth leakage protective device


Optional Water system fittings


Water drain pipe, PPR pipe, dim 16-20mm, connection fittings are made of copper, life span over 10 years.

 Exhaust fan or air exchange hole, size 250mm*250mm made of steel or PVC

 Sanitary ware:

 Western Close tool: ceramic, with pipes and installation fittings

 Urinal: ceramic, with pipes and installation fittings

 Wash basin: ceramic, with post, faucet, pipes and installation fittings

 Shower head, Shower base, Water mixture

Technical Parameter:

Size: GP20, GP40 and HP40 of shipping container

Wind Resistance: Grade 12

Wall permitted loading: 0.6KN/ m2

Ceiling Permitted live loading: 0.5 KN/m2

Wall Coefficient of thermal conductivity: K=0.442W/mk

Ceiling Coefficient of thermal conductivity: K=0.55W/ m2K


Our Services


1. Professional design and engineering team: Full solution for site camp design. We could make the design for whole camp as per your requirement.


 2. Procurement and Manufacture for all material for prefabricated building. We have a professional procurement team to make sure all the materials are with good quality. And our factory operation under ISO standard, to make sure the fabrication works with high technology.




3. Site management & Installation supervision, We could send our engineers to help for the installation supervision, you just need to prepare a team which know normal construction works will be OK.






Why Choose Container for Site Camp Solution? There are many advantages to modular camp construction for site camps including:




1) Good ability to assemble and disassemble for several times without damage. 2) Could be lifted, fixed and combined freely. 3) Heatproof and waterproof. 4) Cost saving and convenient transportation (Each 4 container house can loaded in one standard container) 5) Service life can reach up to 15 - 20 years 6) We can provide the service of installation, supervision and training by extra.



Company Information


Our Weifang Henglida Steel Structure Co.,Ltd.( Lida Group)  is one of the largest manufacturers of the prefabricated house, Flat Pack container house, steel villas, and steel structure warehouse in China. We have been doing well in this field for more than 20 years, and we have exported our products to more than 96 countries as well as our domestic market  with  ISO9001, CE and SGS approval.





Lida Group makes use of advanced technology and produces a variety of prefab house. Its appearance makes it compatible with the surrounding area. It has been proved that Lida Group is getting more and more popularity. Its appearance makes it compatible with the surrounding area.
