Introduction of our company:
We,Lida Group,Weifang Henglida Steel Structure, was established in 1995. At present, we haveTotal 720 employees(320 workers, 15 engineers,20 technicians) 100 workers in charge of supervising overseas proect.73000 square meter of factory space.3 production lines for our prefabricated house series,3 production lines fr our prefabricated house series, 3 production lines for our container house series, 2production lines for our steel structure warehouse/workshop series,1production lin for our light-steel villa series,1branch office in Saudi Arabia.
Capability: We once made 30000square meters o prefabricated houses in 20 days for a major buyer in Saudi Arabia. We manufactured 100000 square meters of prefabricated houses monthly for post-Wenchuan Earthquake reconstuction in 2008.
Description:
Container house is designed and developed according to the standard size of shipping container.
It is of heatproof and waterproof. It is widely used as office, meeting room, dormitory, shop, booth,
toilet, storage, kitchen, shower room and so on.
Characters:
Good ability to assemble and disassemble for several times without damage.
Could be lifted, fixed and combined freely.
Heatproof and waterproof.
Cost saving and convenient transportation (Each 4 container houses can loaded in one standard container)
Service life can reach up to 10 - 15 years
We can provide the service of installation, supervision and training by extra.
Technical Parameter:
Size: GP20, GP40 and HP40 of shipping container
Wind Resistance: Grade 12
Wall permitted loading: 0.6KN/ m2
Ceiling Permitted live loading: 0.5 KN/m2
Wall Coefficient of thermal conductivity: K=0.442W/mk
Ceiling Coefficient of thermal conductivity: K=0.55W/ m2K
Material specification
overall size | 6058x2438x2591mm |
unit weight | 1.8 tons |
roof system | |
outer steel plate | 1.2mm |
roof steel keel | C section 80x40x20x2.0mm |
insulation | 80mm fiber glass |
wooden board | 8mm |
PVC ceiling board | 12mm |
bottom system | |
PVC floor leather | 1.5mm |
bamboo plywood | 15mm |
bottom steel frame | C section steel 100x40x20x2.0mm |
insulation | 1 00mm fiber glass |
bottom steel plate | 0.5mm |
wall system | |
75mm sandwich panel | PU,EPS,fiber glass, rock wool |
windows | pvc sliding windows ( rolling shutter for option) |
doors | steel door/ sandwich panel |
We can supply bathroom and kitchen according to your request. |
Company pictures below:
Details information requested from your side to get exact offer:
1. Dimension: Length, width, height, eave height, roof pitch, etc.
2. Local climate: Wind speed, snow load, earthquake etc.
3. Your production process : According to your production process to design .
4. Roof and wall : PU/EPS/PVC Sandwich panel or color steel sheet .
5. Collecting light and ventilation : FRP-Lighting board and ventilation clerestory .
6. Doors and windows: Dimension, quantity, position to put them, Plastic steel or aluminum alloy .
7. Track crane beam: Do you need track crane beam inside the steel structure? And its capacity.
8. Roof gutter : Stainless steel, galvanized steel, color steel plate .
Steel structure parameters
1.The columns and beams is made of H section steel, steel grade is Q235B or Q345B.
2.The envelop construction net is made of cold form C-style purlin .
3.The wall and roof are made of color steel board or sandwich panels.
4.Doors and windows could be designed at anywhere suit to different requests, could sliding type or rolling up type .
Workshop view:

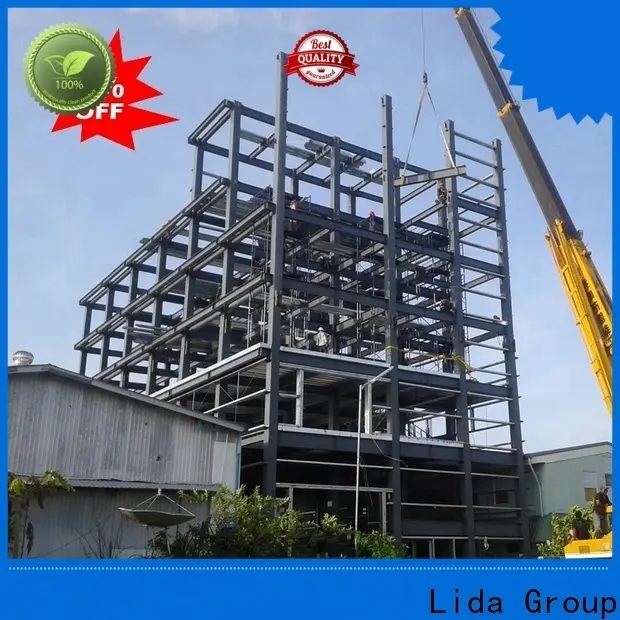

Installation pictures at construction site:
Installation
We welcome you to contact us for more information of
prefab house and look forward to working with you !
