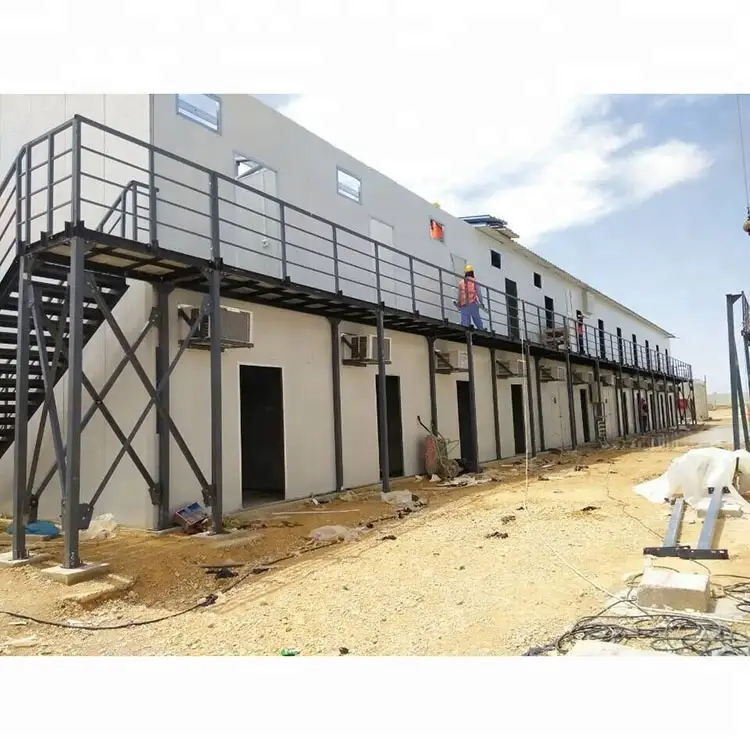

Workers insulated real estate labor camps prefabricated houses

Workers insulated real estate labor camps prefabricated houses

Add success, do you want to check your shopping cart?

Quick Details
Place of Origin:
Shandong, China
Brand Name:
Model Number:
House, Toilet, accommodation dormitory
Q345 or Q235
Steel Structure Frame Welded
Main material:
Square Steel Tube
Main structure:
Steel Tube
prefab camp house
Product name:
Workers insulated real estate labor camps prefabricated houses
Supply Ability
Supply Ability:
30000 Square Meter/Square Meters per Month prefab camp house

Workers insulated real estate labor camps prefabricated houses

Product Description

 Easy installation real estate warehouses prefab steel structure for building


1. Wide span: single span or multiple spans, the max span is 36m without middle column.

2. Low cost: Unit price range from USD35/m2 to USD100/m2 according to customer’s request.

3. Fast construction and easy installation.

4. Long using life: up to 50 years.

5. Others: environmental protection, stable structure, earthquake resistance, water proofing, and energy conserving.



1. The main frame (columns and beams) is made of welded H-style steel.

2. The columns are connected with the foundation by pre-embedding anchor bolt.

3. The beams and columns, beams and beams are connected with high intensity bolts.

4. The envelop construction net is made of cold form C-style purlins.

5. The wall and roof are made of color steel board or color steel sandwich panels, which are connected with the purlin by Self-tapping nails.

6. Doors and windows can be designed at anywhere which can be made into normal type, sliding type or roll up type with material of PVC, metal, alloy aluminium, sandwich panel and so on.


1. Steel Structure Buildings Introduction:

Light steel structure building is widely used as large factory, warehouse, workshops, bridges, stadiums and other buildings. Light steel structure warehouse building is a new type of building structure system, which is formed by the main steel framework linking up H-section, Z-section, and U-section steel components, roof and walls using a variety of panels and other components such as windows and doors.


2. Steel Structure Buildings Characteristics:

1.Wide span: single span or multiple spans, the max span is 36m without middle column
2.Low cost: unit price range from USD35/m2 to USD70/m2 according to customers request
3. Fast construction and easy installation
4. Long using lifespan: up to 50 years
5.Others: environmental protection, stable structure, earthquake resistance, water proofing, and energy conserving.

product display


prefabricated house








Main steel frame


H-section steel

Q345 steel 8mm to 10mm


Automatic Submerged Arc Welding

Rust removing

Sand blasting

surface processing

Alkyd Paint or galvanized

High strength bolt

Grade 10.9

Supporting system



Angle brace

L50x4,Steel Q235,Process and painting

Cross bracing

dia.20 round bar,Steel Q235, process and painting

Tie bar

dia.89*3 round pipe,Steel Q235 Process and painting

Batter brace

dia.12 round bar,Steel Q235 process and painting

Ordinary bolt

Galvanized bolt





C160*60*2.5,steel Q235,Painting or galvanized

Out-roof panel

Sandwich panel or corrugated steel plate

Transparent skylight

6mm thick PVC


Sealant,self-tapping screw, etc.

Edge cover

Made of color steel sheet thickness 0.5mm


Made of steel sheet thickness 0.8mm, or PVC


dia.110 PVC




C160*60*2.5,steel Q235,paint

Wall panel

Sandwich panel or corrugated steel plate


Sealant,self-tapping screw etc

Edge cover

Made of color steel sheet thickness 0.5mm



unpowered axial-flow ventilator or monitor roof

Door &  window


Rolling door/sliding door, PVC/alu. alloy window



With or without crane, ranging from 5 tons to 20 tons

Related Products


Company Information






Q: Are you factory or trading company?

A: Our Lida Group have main factory named Weifang Henglida Steel structure Co., Ltd., which is in Weifang city. Qingdao Lida construction Facility Co., Ltd. is in Qingdao city. Shouguang Lida Prefab House Factory is in Shouguang city, all of them are in Shandong province.


Q: How about your production capacity?

A: Pre engineered steel structure building (warehouse/workshop/hangar/shed/high rise apartment): 50000 sqm monthly. Prefabricated house (portacabin/labor camp/site office): 100000 sqm monthly. Prefab affordable house (low cost family/residential/refugee): 4200 units monthly. Container house: 800 units monthly. Light steel villa: 10000 sqm monthly.


Q: How about your quality control?

A: We have got certificate ISO9001:2015, certificate CE EN 1090. Products processing through cutting, bending, welding, shot blasting, ultrasonic testing, packing, storing, loading to ensure no quality defects.


Q: Is third party inspection available?

A: SGS, BV, TUV, etc. are available, it is according to client requirement.


Q: How about your delivery time?

A: Generally within 30 days, it is according to order quantity, partial shipment is allowed for big order.


Q: What about the installation?

A: We'll provide the detailed installation drawing, supervisors guiding installation is available. We can do turnkey job for some kind of projects.


Q: How to ensure the product you supply is what we want exactly?

A: Before placing order, our sales and engineers team will provide you the suitable solution according to your requirements. Proposal drawing, Shop drawing, 3D drawing, Materials photos, Finished projects photos are available, which will help you understand the solution we provided deeply.


Lida Group has a guaranteed supply of high-quality raw materials. Besides, we have established long-term cooperative relations with universities and scientific research institutions across the country. We have strong innovation capability, powerful technical strength, and good industry reputation. Our prefab house has stable performance and reliable quality, and has higher cost performance than other similar products. prefab house is designed carefully by professionals and is manufactured based on high-quality steel. Besides, it is strictly tested by relevant departments before being launched on the market. It is ensured to be in line with national quality standards.
