2 bedroom 3 storey prefab house turkey

这里可以自定义设置
2 bedroom 3 storey prefab house turkey
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
LIDA
Model Number:
LDP2016
Main Materials:
Q235 Steel,steel square tube
Wall and Roof:
Sandwitch panel
Size:
Custom Required
Feature:
cheaper,multiduty,easy installation,recyclable
Certificate:
ISO9001,EN1090,BV,SGS
Standard:
GB
Application:
Office,domitory,toilet,bathroom etc.
Usage:
living,work,washing,rent etc.
Color:
Customized
keywords:
prefab house turkey
Supply Ability
Supply Ability:
50000 Square Meter/Square Meters per Week

2 bedroom 3 storey prefab house turkey

Product Description



Prefabricated House

Prefabricated house is made of light steel as steel structure and sandwich panels for wall and roof. The sandwich panels can be polystyrene, polyurethane, rock wool and fiber glass sandwich panels for insulation. As a standardized construction product, it has below main features: Dry installation, no construction garbage caused; Environment protective materials adopted, repeated use and low cost; Flexible size and easy to assemble and disassemble with elegant appearance; Safe and durable. It is suitable for temporary buildings such as dormitory, canteen, recreation room, washing room, etc.



Technical Parameter of standard prefabricated house:

1. Wind resistance: Grade 11(wind speed111.5km/h)

2. Earthquake resistance: Grade 7

3. Live load capacity of roofing: 0.5kn/m2

3. External and internal wall heat transmission coefficient: 0.35Kcal/m2hc

4. First floor load capacity: 150 kg/m2

5. Live load of corridor is 2.0kn/ m2

6. Four skilled workers can finish installation of 100sqm in 8 hours for the light steel structure.

7. Most components of the house are recycled, so the shelf life is over 20 years without any building garbage.

8. We can design and produce the house according to customer’s request.

9. We can provide the service of installation, supervision and training by extra.



No.



ItemSpecification & Remark
1



Steel Structure



Q235 steel (painting)

Square Tube columns, C section steel purlin and  roof truss etc.

2



Roof panel



75mm EPS panel with 0.4mm galvanized color steel on both sides, density for EPS is 12kg/m3

(or other materials such as rock wool panel,fiber glass panel etc.Thickness could be 50mm,75mm or 100mm.)

3



Exterior wall panel



75mm EPS panel with 0.4mm galvanized color steel on both sides, density for EPS is 12kg/m3

(or other materials such as rock wool panel,fiber glass panel etc.Thickness could be 50mm,75mm or 100mm.)

4



Interior wall panel



50mm EPS panel with 0.4mm galvanized color steel on both sides, density for EPS is 12kg/m3

(or other materials such as rock wool panel,fiber glass panel etc.Thickness could be 50mm,75mm or 100mm.)

5



Door



Sandwich panel door
6



Windows



PVC sliding window
7



Ceiling



6mm Gypsum /
12mm PVC

8



flooring for first floor



18mm Plywood
9



First floor covering



1.5mm PVC floor leather
10



Accessories



0.4mm Galvanized color steel edge cover, self-screws, bolts and so on.



Packaging & Shipping

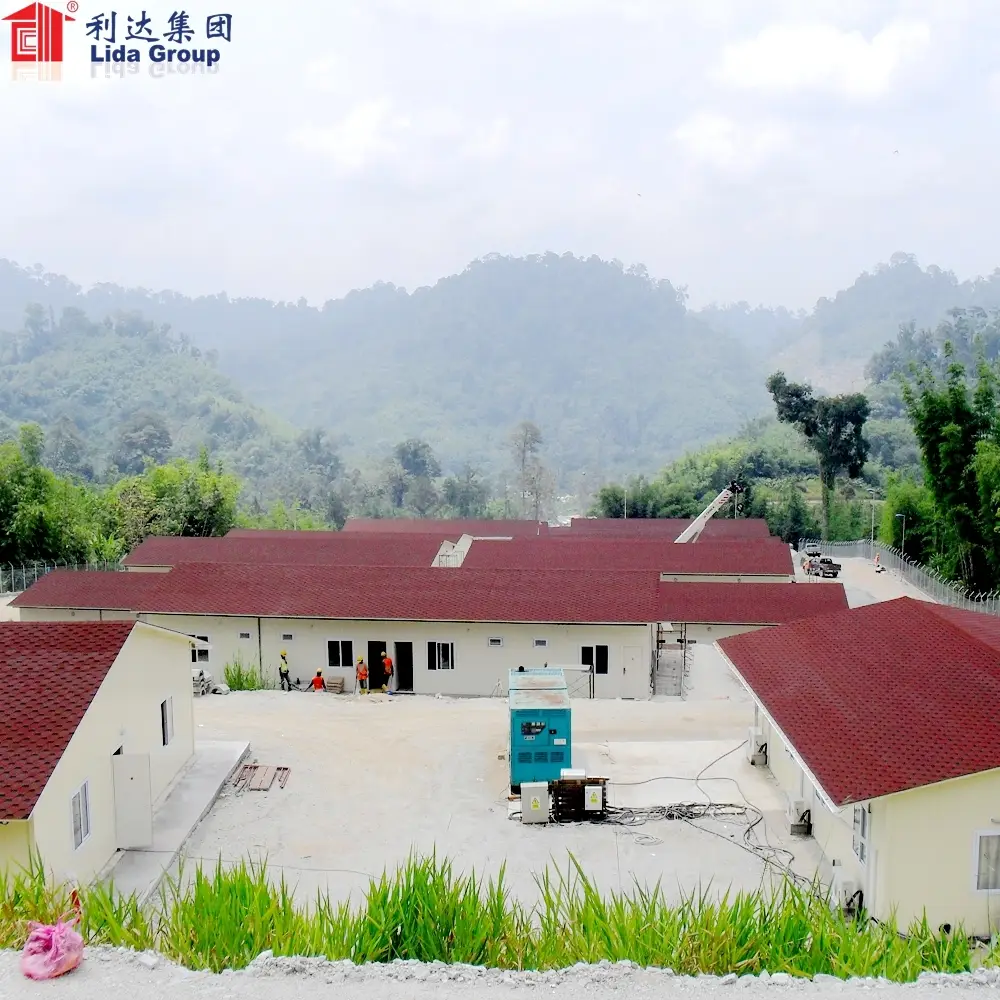

Items&Project Show

Company Information

   We Weifang Henglida Steel Structure Co.,Ltd.( Lida Group)  is one of the leading manufacturers of the prefabricated house, Flat Packed container house, steel villas, and steel structure warehouse in China. We have been doing well in this field for more than 20 years, and we have exported our products to more than 110 countries as well as our domestic market and the quality has been approved by CE, ISO9001:2000, BV and SGS.







Clients Visit



Our Services

1. Professional design and engineering team:

Full solution for site camp design. We could make the design for whole camp,warehouse,office and so on as per your requirement.



 2. Procurement and Manufacture for all material for prefabricated building:

We have a professional procurement team to make sure all the materials are with good quality. And our factory operation under ISO and EN1090 standard, to make sure the fabrication works with high technology.



3. Site management & Installation supervision support:

 We could dispatch our engineers to help for the installation supervision, you just need to prepare a team which know normal construction works will be OK.

Lida Group has a team of professional designers and engineers. The team members have rich industry experience, advanced design concepts, and exquisite technology. The prefab house we produce is stable, safe and high-quality. Lida Group has professional design team and production team. Besides, we have advanced production technology and sophisticated production equipment. All this provides a strong guarantee for the high quality of prefab house.
