fabrication light weight steel structure warehouse function hall design

这里可以自定义设置
fabrication light weight steel structure warehouse function hall design
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Type:
LIDA, steel structure function hall design
Warranty:
1 Year
After-sale Service:
Online technical support, Onsite Inspection, Free spare parts, OTHER
Project Solution Capability:
3D model design, Cross Categories Consolidation, Others
Application:
Apartment, light weight steel structure warehouse
Place of Origin:
Shandong, China
Brand Name:
LIDA Group
Model Number:
Design Style:
Contemporary
Material:
fabrication steel structure
Steel:
C&H-section steel, Q235/Q345
Certificates:
CE/ISO/BV/
Sandwich panel:
Firber glass/Rock wool/PU/EPS
Advantage:
easy and quick installation/wind resistance/durable
Usage:
warehouse/factory/garage/refrigeration house/workshop/plant
anti-seismic:
magnitude 8
Surface treatment::
Hot Dip Gavalnized or Alkyd pain
Product Certification certification
CE Certified.
Valid from 2017-02-08 until 2049-12-31
Supply Ability
Supply Ability:
5000 Square Meter/Square Meters per Week

Fabrication light weight steel structure warehouse function hall design

Product Description

 Pre engineered steel structure building is a Green economy building system, which is formed by the main structure (H-section steel for beam/column, C channel steel or Z channel steel for purlin), substructure (Round steel bar or Angle steel for bracing, Round steel tube for tie bar, Angle steel for angle brace), roof and wall system (using sandwich panel or single steel sheet), door and window system. Pre engineered steel structure building building is widely used as warehouse, workshop, hangar, shed, etc..

Component Specification



Main structure

H-section steel

Q345 steel H beam, Box column is also available
Welding Automatic Submerged Arc Welding
Rust removing Shot blasting
surface processing twice primer and twice finish Alkyd Paint or hot dip galvanized
High strength bolt Grade 10.9
Substructure Angle brace L50x4,Steel Q235,Process and painting
Cross bracing Dia.20 round bar,Steel Q235, process and pre-galvanized
Tie bar Dia.89*3 round pipe,Steel Q235 Process and painting or pre-galvanized
Batter brace Dia.12 round bar,Steel Q235 process and pre-galvanized
Ordinary bolt Galvanized bolt
Roof Purlin C channel or Z channel,steel Q235, galvanized
Roof panel (50mm, 75mm, 100mm, 150mm) Sandwich panel or corrugated GI color steel sheet
Transparent skylight 1.2mm FRP
Accessories Sealant, self-tapping screw, etc.
Edge cover Made of color steel sheet
Gutter Made of steel sheet thickness 0.8mm, or PVC
Rinspout PVC pipe
Wall Purlin C channel or Z channel, steel Q235, galvanized
Wall panel (50mm, 75mm, 100mm, 150mm) Sandwich panel or (0.4mm, 0.5mm, 0.6mm, 0.7mm) corrugated GI color steel sheet
Accessories Sealant, self-tapping screw etc
Edge cover Made of GI color steel
Ventilator   unpowered axial-flow ventilator or monitor roof
Door & window   Electric rolling door/sliding door, PVC/Alu. alloy window
Crane

With or without crane, ranging from 5 tons to 20 tons

Advantages



1) Single span and multiple span are available, the max clear span is 36m without central column (post).

2) Service life is up to 70 years.

3) Cost effective, the average price is from USD 30/sqm to USD 90/sqm.

4) Fast construction, from production to finishing installation, only need several months.

5) Green and Environmental, energy-saving, anti-fire, anti-earthquake, water proof.

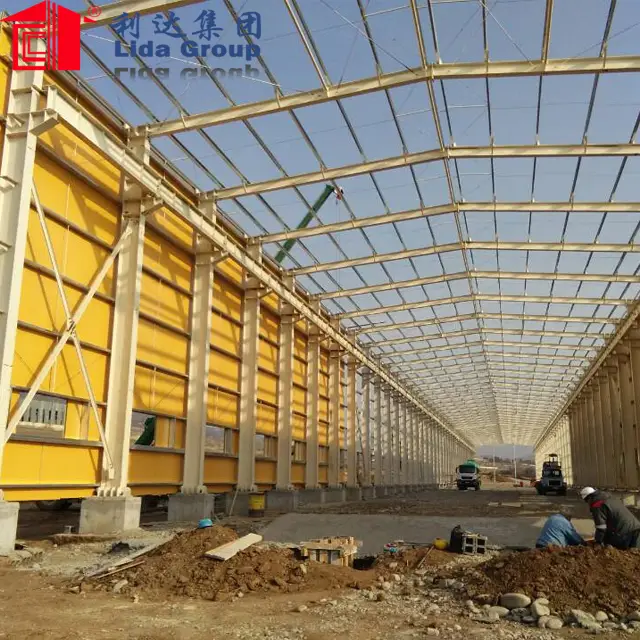

Installation



Project case





Company Information



Established in 1993, LIDA Group -Weifang Henglida Steel Structure Co., Ltd is one of the biggest manufacturer of prefabricated building in China, We have been awarded ISO9001-2000, CE and SGS certficates.

750 employees, including 50 engineers and 200 workers in charge of supervising overseas projects.

83000sqm meters of factory space.

5 production lines for our prefabricated house series.

5 production lines for our container house series.

3 production lines for our steel structure warehouse/workshop series

1 production line for our light steel Villa series

Our Team



Customer Visit





Obviously, it is very efficient in improving people's overall efficiency. People can spend less time to finish their tasks or goals. This product is known fr its strong seismic resistance. The product will definitely bring incremental returns for people in the long run. It generates utility savings over its service life. This product is known fr its strong seismic resistance.
