High Quality Light Steel Prefabricated House 1

High Quality Light Steel Prefabricated House 2

High Quality Light Steel Prefabricated House 3

High Quality Light Steel Prefabricated House 4

High Quality Light Steel Prefabricated House 5

High Quality Light Steel Prefabricated House 6

High Quality Light Steel Prefabricated House

Inquiry

Write a Review

Overview

Quick Details

Warranty:: 1 Year

After-sale Service:: Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement, NONE

Project Solution Capability:: graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, NONE, Others

Place of Origin:: Shandong, China

Brand Name:: Lida

Model Number:: prefabricated house

Use:: Carport, Hotel, House, Kiosk,Booth, Office, Sentry Box,Guard House, Shop, Toilet, Villa, Warehouse, Workshop,Plant

Product Type:: Steel Structure

Product name:: prefabricated house

Application:: office,shower room ,toilet,living house,hotel

Certification:: ISO9001/TUV/SGS/CE

Transport and load:: Container Shipment

Material:: Q235 Steel

Color:: Customized Color

Size:: Customers Request

Wall:: 50mm/75mm Sandwich Panel

Door:: Steel Door

Window:: Aluminium Alloy Window ir UPVC Sliding Window

Supply Ability

Supply Ability:: 50000 Square Meter/Square Meters per Month

Product Description

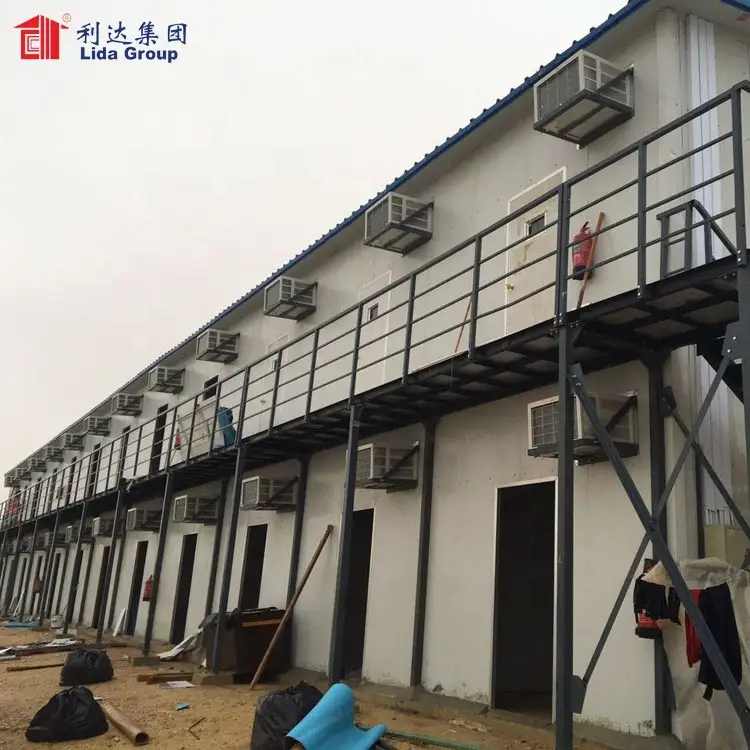

High Quality Light Steel Prefabricated House

Description of Prefabricated House:

1, Prefabricated house is made of light steel as steel structure and sandwich panels for wall and roof

2,The sandwich panels can be polystyrene, polyurethane, rock wool, and fiber glass sandwich panels for insulation

3,The standard prefabricated house is made by 1.8m as one modular and components connected by bolts

4,The house can be assembled and disassembled more than 6 times and the service lifespan is more than 20 years

Speficiations of Prefabricated House

Type	With or without steel chassis	Type one: without steel chassis, build on concrete strip foundation Type two: with steel chassis, the building will be put on concrete blocks
Type	Story	One storey or two storey or three storey are available
Frame system	Steel column	Q235 Steel, 1001002.5 square tube, alkyd painting, twice primer paint & twice finish paint
	Steel roof truss	C1004015*2.0, welding and galvanized
	Roof and wall purlin	C1004015*2.0, galvanized
	Cross bracing	Q235 Steel, L40*3 angle steel, alkyd painting, twice primer paint & twice finish paint
	Chemical bolt	M16, chemical bolt
	Ordinary bolt	4.8S, galvanized
Steel chassis or 1st floor system	Main beam	HN2501255.5*8, Q235 Steel, alkyd painting, twice primer paint & twice finish paint
	Secondary beam	C1004015*2.0 galvanized
	Floor structure board	18/20mm plywood and fiber cement board
	Flooring	PVC floor leather and ceramic tiles are available
Wall and Roof system	Wall panel	Sandwich panel: Rock wool, Glass wool, EPS, PU are available Thickness: 50mm, 75mm, 100mm, 150mm, 200mm are available
Wall and Roof system	Roof panel	Sandwich panel: Rock wool, Glass wool, EPS, PU are available Thickness: 50mm, 75mm, 100mm, 150mm, 200mm are available
Ceiling system	Dry room	6006006mm gypsum board,with framework
Ceiling system	Wet room	6006005mm calcium silicate board, with framework
Door and window system	Door	Fire resistant steel single/double door, emergency door with panic bar, aluminum glass door, MDF door are available
Door and window system	Window	PVC, Aluminum sliding window with single/double glazed glass, with mosquito screen, with louver are available
Electric and Plumbing system	Electric units	Electric wire, conduit, socket, switch, light, distribution box
Electric and Plumbing system	Sanitary units	Shower, closestool, basin, water pipe

Company Information

Workshop Internal Photo

Lida group has achieved ISO9001:2005 international quality system certification, EU CE certification(EN1090) and passed SGS, TUV and BV inspection.

FAQ

Frequently Asked Questions

Q: Are you factory or trading company?

A: We, Lida Group, have main factory named Weifang Henglida Steel structure Co., Ltd., which is in Weifang city. Qingdao Lida construction Facility Co., Ltd. is in Qingdao city. Shouguang Lida Prefab House Factory is in Shouguang city, all of them are in Shandong province.

Q: How about your production capacity?

A: Pre engineered steel structure building (warehouse/workshop/hangar/shed/high rise apartment): 50000 sqm monthly. Prefabricated house (portacabin/labor camp/site office): 100000 sqm monthly. Prefab affordable house (low cost family/residential/refugee): 4200 units monthly. Flat pack container house: 800 units monthly. Light steel villa: 10000 sqm monthly.

Q: How about your quality control?

A: We have got certificate ISO9001:2015, certificate CE EN 1090. Products processing through cutting, bending, welding, shot blasting, ultrasonic testing, packing, storing, loading to ensure no quality defects.

Q: How about your delivery time?

A: Generally within 30 days, it is according to order quantity, partial shipment is allowed for big order.

Q: What about the installation?

A: We'll provide the detailed installation drawing, supervisors guiding installation is available. We can do turnkey job for some kind of projects.

Also if you have any questions, please contact us freely.

Lida Group has a senior R&D design and engineering construction team equipped with a scientific, perfect and standardized quality assurance system. With strong production strength, we have passed the relevant national qualification certification. We make sure that prefab house has excellent quality and can meet the needs of the international market. Lida Group learns foreign advanced technology and introduces sophisticated production equipment. In addition, we have a special inspection department to conduct strict performance tests. All this provides a strong guarantee for high quality and stable performance of prefab house.
