Latest military camp Suppliers for mining factory 1
Latest military camp Suppliers for mining factory 1

Latest military camp Suppliers for mining factory

Inquiry

Overview
Quick Details
Warranty:
3 years
After-sale Service:
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
Project Solution Capability:
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
Place of Origin:
Shandong, China
Brand Name:
LIDA
Model Number:
LDP2016
Main Materials:
Q235 Steel,steel square tube
Wall and Roof:
Sandwitch panel
Customized:
Yes
Feature:
cheaper,multiduty,easy installation,recyclable
Certificate:
ISO9001,EN1090,BV,SGS
Application:
Office,domitory,toilet,bathroom etc.
Usage:
living,work,washing,rent etc.
Color:
Customized
keywords:
saudi camping
Supply Ability
Supply Ability:
50000 Square Meter/Square Meters per Month

Temporary portable cabins for Refinery and LNG labour camp

Product Description

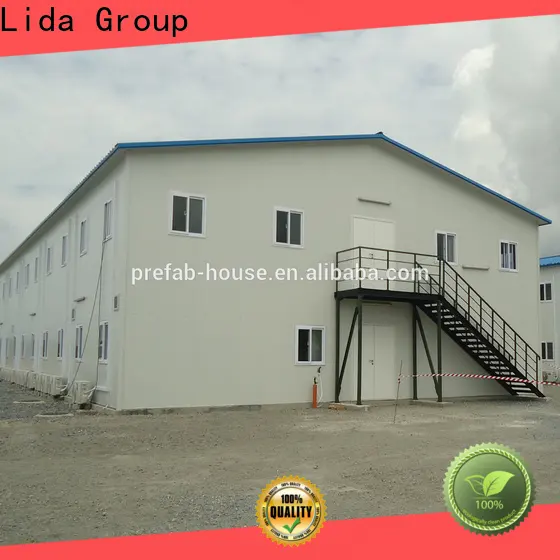

Prefabricated House

Prefabricated house is made of light steel as steel structure and sandwich panels for wall and roof. The sandwich panels can be polystyrene, polyurethane, rock wool and fiber glass sandwich panels for insulation. As a standardized construction product, it has below main features: Dry installation, no construction garbage caused; Environment protective materials adopted, repeated use and low cost; Flexible size and easy to assemble and disassemble with elegant appearance; Safe and durable. It is suitable for temporary buildings such as dormitory, canteen, recreation room, washing room, etc.



Technical Parameter of standard prefabricated house:

1. Wind resistance: Grade 11(wind speed111.5km/h)

2. Earthquake resistance: Grade 7

3. Live load capacity of roofing: 0.5kn/m2

3. External and internal wall heat transmission coefficient: 0.35Kcal/m2hc

4. First floor load capacity: 150 kg/m2

5. Live load of corridor is 2.0kn/ m2

6. Four skilled workers can finish installation of 100sqm in 8 hours for the light steel structure.

7. Most components of the house are recycled, so the shelf life is over 20 years without any building garbage.

8. We can design and produce the house according to customer’s request.

9. We can provide the service of installation, supervision and training by extra.



No.



ItemSpecification & Remark
1



Steel Structure



Q235 steel (painting)

Square Tube columns, C section steel purlin and  roof truss etc.

2



Roof panel



75mm EPS panel with 0.4mm galvanized color steel on both sides, density for EPS is 12kg/m3

(or other materials such as rock wool panel,fiber glass panel etc.Thickness could be 50mm,75mm or 100mm.)

3



Exterior wall panel



75mm EPS panel with 0.4mm galvanized color steel on both sides, density for EPS is 12kg/m3

(or other materials such as rock wool panel,fiber glass panel etc.Thickness could be 50mm,75mm or 100mm.)

4



Interior wall panel



50mm EPS panel with 0.4mm galvanized color steel on both sides, density for EPS is 12kg/m3

(or other materials such as rock wool panel,fiber glass panel etc.Thickness could be 50mm,75mm or 100mm.)

5



Door



Sandwich panel door
6



Windows



PVC sliding window
7



Ceiling



6mm Gypsum /
12mm PVC

8



flooring for first floor



18mm Plywood
9



First floor covering



1.5mm PVC floor leather
10



Accessories



0.4mm Galvanized color steel edge cover, self-screws, bolts and so on.



Packaging & Shipping

 Latest military camp Suppliers for mining factory 2

Items&Project Show

Latest military camp Suppliers for mining factory 4Latest military camp Suppliers for mining factory 6Latest military camp Suppliers for mining factory 8Latest military camp Suppliers for mining factory 10Latest military camp Suppliers for mining factory 12Latest military camp Suppliers for mining factory 14Latest military camp Suppliers for mining factory 16

Latest military camp Suppliers for mining factory 18

Company Information

   We Weifang Henglida Steel Structure Co.,Ltd.( Lida Group)  is one of the leading manufacturers of the prefabricated house, Flat Packed container house, steel villas, and steel structure warehouse in China. We have been doing well in this field for more than 20 years, and we have exported our products to more than 110 countries as well as our domestic market and the quality has been approved by CE, ISO9001:2000, BV and SGS.

                Latest military camp Suppliers for mining factory 20

 Latest military camp Suppliers for mining factory 22Latest military camp Suppliers for mining factory 24Latest military camp Suppliers for mining factory 26



Clients Visit

 Latest military camp Suppliers for mining factory 28

Our Services

1. Professional design and engineering team:

Full solution for site camp design. We could make the design for whole camp,warehouse,office and so on as per your requirement.



 2. Procurement and Manufacture for all material for prefabricated building:

We have a professional procurement team to make sure all the materials are with good quality. And our factory operation under ISO and EN1090 standard, to make sure the fabrication works with high technology.



3. Site management & Installation supervision support:

 We could dispatch our engineers to help for the installation supervision, you just need to prepare a team which know normal construction works will be OK.

Latest military camp Suppliers for mining factory 30

The product is valued for its huge durability, popular in the construction industry. People who use this product said that it can last for years. This product requires little maintenance, which helps save labor costs. The product has been already considered as an energy-efficient solution for the construction of modern buildings, thanks to its durability. This product requires little maintenance, which helps save labor costs.
