Low Cost Casas Prefabricadas Modular Flat Pack Container House Europe Container House

这里可以自定义设置
Low Cost Casas Prefabricadas Modular Flat Pack Container House Europe Container House
B站不支持收货地址
B站不支持库存规格
Model
LD-LC-003
MOQ
6 sets
Payment
L/C, T/T
Place of Origin
Shandong,China
Brand
Lida
Delivery Time
25-30days
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
该产品后台详情无内容
    container house

    MISSION

    Low Cost Casas Prefabricadas Modular Flat Pack Container House European Container House

    Specification
    1) 20ft: 6055*2435*2896mm
    2) 40ft: 12192*2435*2896mm
    3) Roof Type: Flat roof with organized internal water draining design
    4) Storey: ≤3
    Design parameter
    1) Life span: up to 20years
    2) Floor Live load: 2.0KN/m2
    3) Roof Live load: 0.5KN/m2
    4) Wind load: 0.6KN/m2
    5) Earthquake-resistance: Grade 8, Fire-proof: Grade 4
    Wall panel
    1) Thickness: 75mm fiber glass sandwich panel, effective width: 1150mm
    2) Exterior steel sheet (standard configuration): Corrugated 0.4mm Aluminum-zinc color steel sheet, PE finishing coat, Color:
    white, Aluminum-zinc thickness≥40g/m2
    3) Insulation layer (standard configuration): 75mm Fiber glass, density≥50kg/m3, Fire-proof standard: grade A non-flambable
    4) Interior steel sheet(standard configuration): Flat 0.4mm Aluminum-zinc color steel sheet, PE finishing coat, Color: white,
    Aluminum-Zinc thickness≥40g/m2
    Roof system
    1) Steel frame & accessories: Main roof frame: cold formed steel, thickness=2.5mm, galvanized. with 4pcs galvanized lifting
    corners. Roof purlin: C80*40*15*2.0, galvanized. Q235B steel
    2) Roof panel: 0.4 or 0.5mm thickness Aluminum-zinc color steel sheet, PE finishing coat. Color: white, Aluminum thickness≥70g/m2,
    360° full connection
    3) Insulation: 100mm thickness Fiber glass with aluminum foil, Density=14kg/m3, Grade A fire-proof, nonflammable.
    4) Ceiling board: V-170 type, 0.5mm Aluminum-zinc color steel sheet, PE finishing coat. Color: white, Aluminum-zinc
    thickness≥40g/m2.
    5) Industrial socket: Fixed in explosion-proof box at the top beam of the short side, with 1 main power plug for power connection
    between containers


    Lida Flatpack Container House is steel-frame structure, consisted with roofing frame, corner pillar and floor frame. All parts are prefabricated in factory and installed in site.

    Lida Container House has many advantages, such as quick installation, easy moving, high turnover, long lifespan, heat proofing, and waterproofing. Flexible & prefabricated layout design can realize the different functional purposes.



    Lida Container House can be used as labor camp house , refugee camp house, staff camp house, mining camp house, temporary accommodation buildings, toilet and shower building, laundry room, kitchen and dining/mess/canteen hall, recreation hall, mosque/prayer hall, site office building, clinic building, guard house.

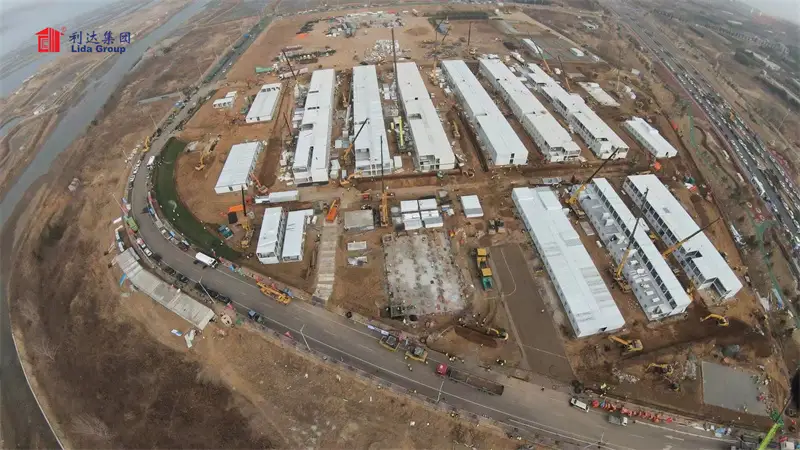

    Lida Container house is widely used as the labor camp or army in general contracting projects, Oil and gas field projects, Hydroelectric Projects, Military projects, mining sectors projects, and so on, which are intended for short- and long-term site mobilization. Welcome to visit Lida container house manufacturer.
