metal structural steel i beam price store room
Introduction:

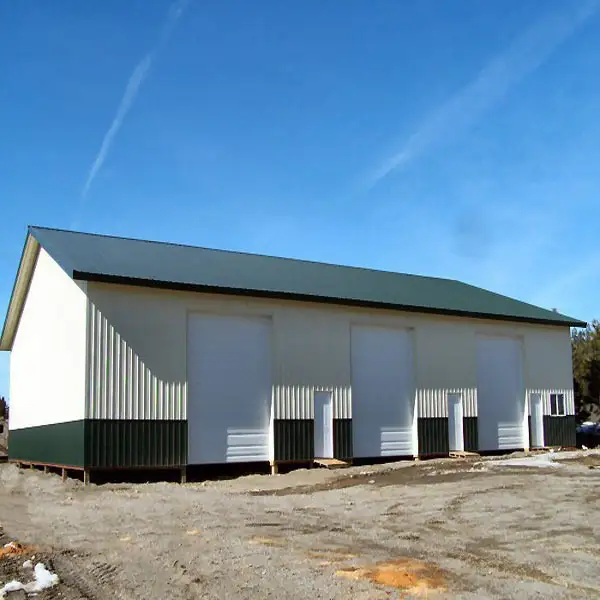

Steel structure building is widely used as large factory, warehouse, workshops, bridges, stadiums and other buildings. Light steel structure building is a new type of building structure system, which is formed by the main steel framework linking up H-section, Z-section, and U-section steel components, roof and walls using a variety of panels and other components such as windows and doors Characteristics: 1.Wide span: single span or multiple spans, the max span is 36m without middle column 2.Low cost: unit price range from USD35/m2 to USD70/m2 according to customers request 3. Fast construction and easy installation 4. Long using lifespan: up to 50 years 5.Others: environmental protection, stable structure, earthquake resistance, water proofing, and energy conserving.
Specifications:
Material | Specification |
Length | With customer's requirement |
Width | Single span, double-span, Multi-span |
Height | With customer's requirement |
Column | Q235, Q345 welded H section steel |
Beam | Q235, Q345 welded H section steel |
Purlin | Q235 C channel or Z channel |
Knee brace | Q235 angle steel |
Vertical and transversal support | Q235 angle steel, round bar or steel pipe |
Tie bar | Q235 steel pipe |
Brace | Q235 round bar |
Cladding system | EPS, PU, Fiber Glass and Rock Wool sandwich panels or corrugated steel sheet with fiber glass wool insulation. available in Diferentcolors&gauges |
Partition wall | sandwich panels (EPS, PU, Fiber glass,Rock Wool etc.) available in Different colors&gauges |
Door | sandwich panel sliding door or roller door |
Gutter | stainless steel or color steel sheet |
Rainspout: | PVC |
Live load on roof | In 120kg/Sqm (Color steel panel surrounded) |
Wind resistance grade | 12 grades |
Earthquake-resistance | 8 grades |
Structure usage | Up to 50 years |
Finishing options | vast array of colors and textures available |
Paint Options | Alkyd paiting, two primary painting, two finish painting(gray paint, red paint, white paint, epoxy zinc etc.). Or Galvanized. |
1. Professional design and engineering team: Full solution for site camp design. We could make the design for whole camp as per your requirement.
2. Procurement and Manufacture for all material for prefabricated building. We have a professional procurement team to make sure all the materials are with good quality. And our factory operation under ISO/CE/SGS standard, to make sure the fabrication works with high technology.
3. Site management & Installation supervision, We could send our engineers to help for the installation supervision, you just need to prepare a team which know normal construction works will be OK
Our Weifang Henglida Steel Structure Co.,Ltd.( Lida Group) is one of the largest manufacturers of the prefabricated house, Flat Pack container house, steel villas, and steel structure warehouse in China. We have been doing well in this field for more than 20 years, and we have exported our products to more than 96 countries as well as our domestic market with ISO9001, CE and SGS approval.
.
We welcome you to contact us for more information of
prefab house and look forward to working with you !
