Overview
Quick Details
Place of Origin:
Shandong, China, Qingdao, China
Brand Name:
LIDA
Model Number:
M001
Use:
House, Office, Villa, Labor camp, canteen building,
Certificate:
CE, SGS
Steel Column::
fabricated by 80*80 or 100*100 or 120*120 Square Tube, Q235 Steel
Main triangle Beam:
fabricated by C80, C100, C120, C140 Section steel, Q235 Steel
Wall Panel:
50,75,100, 150mm Steel Sandwich Panel
Roof Panel:
50,75,100, 150mm Steel Sandwich Panel
Flooring:
18mm film faced plywood + 1.5mm PVC floor leather
Window:
PVC Window
Door:
Insulated Steel Door
Supply Ability
Supply Ability:
3000 Square Meter/Square Meters per Day
 Steven Chen

Mobile: 00966 548943324 (Saudi Arabia) or 0086-13869829462(China)

On Line Catalogue:

PDF Catalogue: http://www.lidajituan.com/en/upload/2014/1/8182826942.pdf

LGS Villa Catalogue: http://www.lidajituan.com/en/upload/2014/1/1115150923.pdf



General technical description for  portable cabin prefabricated modular house KSA saudi arabia


Product Description



General technical description for standard prefabricated house worker camp

Technical Parameter:

Technical Parameter of standard prefabricated house:
1. Wind resistance: Grade 11(wind speed≤ 120km/h)
2. Earthquake resistance: Grade 7
3. Live load capacity of roofing: 0.6kn/m2
4. External and internal wall heat transmission coefficient: 0.35Kcal/m2hc
5. Second Floor Load Capacity: 150 kg/m2
6. Live load of corridor is 2.0kn/ m2

7. Wall permitted loading: 0.6KN/ m2
8. Ceiling Permitted live loading: 0.5 KN/m2
9. Wall Coefficient of thermal conductivity: K=0.442W/m2k
10. Ceiling Coefficient of thermal conductivity: K=0.55W/ m2K


Steel framework

Main column: fabricated by 80*80 or 100*100 or 120*120 or 150*150 Square Tube, Q235 Steel  Surface working: Alkyd painting,two primary and two surface.

Main triangle Beam:  fabricated by C80, C100, C120, C140 Section steel, Q235 Steel, Surface working: Alkyd painting,two primary and two surface.

Wall and roof purlin: C80, C100, C120, C140 Section steel, Q235 Steel,
Surface working: Galvanized



Floor

Groud floor will be the concrete foundation with Ceramic tiles or PVC floor leather.
First floor:  18mm plywood  with 2.0mm PVC floor leather for living rooms floor;


Ceiling

Construction:
6mm Gypsum board for dry room
12mm PVC ceiling for wet room


Walls


Insulated Steel Sandwich Panel wall
Panel width: 950mm;
Thickness: 50-120mm.
Powder coated Color steel on both sides:  0.4mm/0.5mm/0.6mm
Insulation: Polystyrene, Rockwool or Polyurethane
Density of Rockwool: 120Kg/m3
Density of Polystyrene: 12Kg/m3, 16KG/M3 20KG/M3
Density of Polyurethane: 40Kg/m3


Door

External door: Insulated with opening dimension 950*2100mm, furnished with lock
with 3keys. Inner door: Insulated steel door.


Windows

Window material: PVC window with fly screen, 4mm glass.

Electrical fittings option

Electrical wire, 2.5mm2 for lighting system, and 4mm2 for AC units.
16A five hole universal socket.
double tube fluorescent lamp, 220V,50-60HZ
Single Switch, Honyar brand, with junction box
Electrical distribution box, box+breakers+earth leakage protective device


Optional Water system fittings

Water drain pipe, PPR pipe, dim 16-20mm, connection fittings are made of copper, life span over 10 years.
Exhaust fan or air exchange hole, size 250mm*250mm made of steel or PVC

Sanitary ware:
Western Close tool: ceramic, with pipes and installation fittings
Urinal: ceramic, with pipes and installation fittings
Wash basin: ceramic, with post, faucet, pipes and installation fittings
Shower head, Shower base, Water mixture


Our Services

1. Professional design and engineering team: Full solution for site camp design. We could make the design for whole camp as per your requirement.

2. Procurement and Manufacture for all material for prefabricated building. We have a professional procurement team to make sure all the materials are with good quality. And our factory operation under ISO standard, to make sure the fabrication works with high technology.

3. Site management & Installation supervision, We could send our engineers to help for the installation supervision, you just need to prepare a team which know normal construction works will be OK.


FAQ

Why Choose Prefabricated house for Site Camp Solution? There are many advantages to modular camp construction for site camps including:

1. Speed of construction and camp installation Allows for the building and the site work to be completed simultaneously, reducing the overall completion schedule, all the Main Structures will be connect with bolts, no welding works. All the wall and roof structure, flooring will be fixed by Self-tapping Screw or nails, normal Carpenter team could make a good job!

2. Economical Solution, compare to concrete building, prefabricated building will be much more Economical.

3. Ability to service remote locations Assembling a work camp close to the work site reduces travel time which reduces cost.

4. Long time span Well-built modular worker camps can last for 10, 15 or 20 years or more.

5.Safe and stable, Earthquake resistance: Grade 7, Wind resistance: Grade 11(wind speed≤ 120km/h)




Company Information



Our Weifang Henglida Steel Structure Co.,Ltd.( Lida Group)  is one of the largest manufacturers of the prefabricated house, Flat Pack container house, steel villas, and steel structure warehouse in China. We have been doing well in this field for more than 15 years, and we have exported our products to more than 40 countries as well as our domestic market  with  ISO9001, CE and SGS approval.
We would like to give fully support for your further inquiry!


Best regards
Steven Chen

China: 0086-13869829462 Moble: KSA: 00966-548943324
---------------------------------------------------------
Weifang Henglida Steel Structure Co., Ltd.
Add: Room1102, Unit B, Zhonghui Commercial Building,Qingdao,266000,China
Tel: 0086-532-88966982    Fax: 0086-532-88965571



Happy new year!

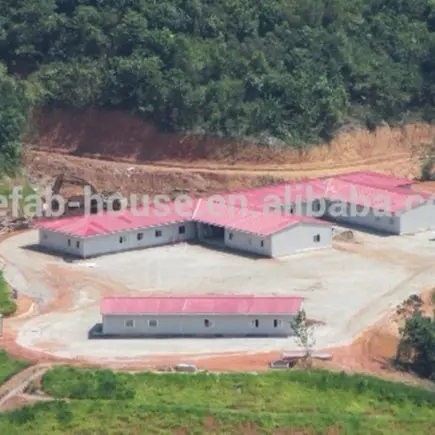

Portable cabin labor camp prefabricated house in Saudi Arabia

portable cabin prefabricated modular house saudi arabia KSA

porta cabin site office  KSA saudi arabia











You are so welcome to send us inquiries!



Best regards



Steven Chen

Mobile: 00966 548943324 (Saudi Arabia) or 0086-13869829462(China)







Lida Group has accumulated rich production experience during the development for many years. Besides, we have professional engineers, advanced production equipment, and strong technical force. Our prefab house is superior in quality and excellent in performance. Lida Group has professional design team, advanced production equipment and excellent engineering team. Our prefab house is excellent in quality and stable in performance and is in line with international standards.
