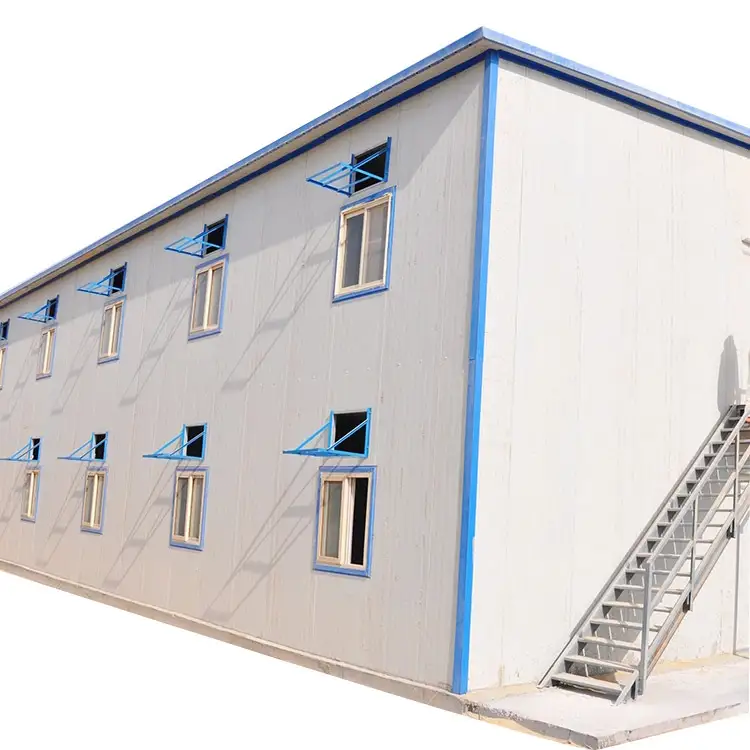

Steel Structural Earthquake Resistant Modular Luxury Prefab House Dormitory

Inquiry

Write a Review

Overview

Quick Details

Place of Origin:: Shandong, China

Brand Name:: LIDA

Model Number:: LIDA-PH001

Use:: Carport, Hotel, House, Office, Sentry Box,Guard House, Shop, Toilet

MATERIAL: LIGHT STEEL FRAME:: SANDWICH PANEL

Supply Ability

Supply Ability:: 3000 Set/Sets per Week

Company Information

Weifang Henglida Steel Structure Co.,Ltd.( Lida Group) is one of the largest manufacturers of the prefabricated house, container house, steel villas, and steel structure warehouse in China.

We have specialized in this field for more than 20 years, and we have exported our products to more than 90 countries as well as our domestic market with ISO9001, CE,BV and SGS certification.

Lida Group is the main supplier of the series products for the Chinese key projects, such as the Olympic Sailing Center, Qingdao bay bridge ,Qingdao Channel Tunnel, etc.

Product Description

Material List For One Storey Prefabricated House
Main Steel Frame
Steel column	Fabricated by Q235 Steel, 8080 or 100100 or 120120 or 150150 Square Tube, alkyd paiting, two primary painting, two finish painting.
Triangular Steel structure roof	Fabricated by Q235 Steel, C80, C100, C120, C140 Section steel, alkyd paiting, two primary painting, two finish painting.
Roof Purlin	Fabricated by Q235 Steel, C80, C100, C120, C140 Section steel, alkyd paiting, two primary painting, two finish painting.
Ordinary bolt	4.8S,Zincification
Roof and Wall
Roof Panel	Insulated Steel Sandwich Panel wall Panel width: 950mm; Thickness: 50-1200mm. Powder coated Color steel on both sides: 0.4mm/0.5mm/0.6mm Insulation: Polystyrene, Rockwool or Polyurethane Density of Rockwool: 120Kg/m3 Density of Polystyrene: 12Kg/m3, 16KG/M3 20KG/M3 Density of Polyurethane: 40Kg/m3
Wall Panel	Insulated Steel Sandwich Panel wall Panel width: 950mm; Thickness: 50-1200mm. Powder coated Color steel on both sides: 0.4mm/0.5mm/0.6mm Insulation: Polystyrene, Rockwool or Polyurethane Density of Rockwool: 120Kg/m3 Density of Polystyrene: 12Kg/m3, 16KG/M3 20KG/M3 Density of Polyurethane: 40Kg/m3
Edge cover	0.4mmgalvanized Color steel , angle Alu.
Fasteners & accessoreis	Nails\glue ect
Ceiling+Flooring
Ceiling	6mm gypsum board,with steel keel
Plywood	18mm film faced plywood
Floor feather	1.5mm PVC floor leather
Door and window
Door	External door: Insulated with opening dimension 950*2100mm, furnished with lock with 3keys. Inner door: Insulated steel door.
Window	PVC window witn 4mm glass, with screem
Electrical System
Electric cable	Honyar brand, lighting 2.5m m2, aircondition: 4.0mm2, BV cable, solid core. Three diferent color
PVC wire Channel	Honyar brand
Lights	double tube fluorescent lamp, 220V,50-60HZ
Switches	Honyar brand, Single Switch, with junction box
Socket	16A five hole univesal socket.
Power distribution cabinet	Honyar brand, box+breakers+earth leakage protective device
Plumbing System and Rain Water Drainage System As per building design

Packaging & Shipping

Our Services

1. Provide best proposal as customers' request. including work out drawings and 3D pictures.

2. High quality facotory production with our more than 20 year working experience in this field.

3. Provide full set of construction drawings after shipment. of course including foundation construction drawing.

4. Send out engineers for installation guidance if need.

FAQ

1. you are manufacture factory or trading company?

A: We are manufacture factory. Welcomed to visit our factory in the city of Weifang.

2.Why Choosing prefab house?

There are many advantages to modular camp construction for site camps including:

(1) Easy to assemble and disassemble for several times without damage.

(2) Could be lifted, moved , and combined freely.

(3) Heatproof and waterproof.

(4) Cost saving and convenient transportation (Each 4 container house can loaded in one standard container)

3. Why we trust you?

(1) We have already passed the ISO,CE,SGS,BV certification.

(2) We are one of the suppliers for Chinese government key project.
