2019 low cost dairy cow shed farming building with ventilation fan

这里可以自定义设置
2019 low cost dairy cow shed farming building with ventilation fan
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷
暂无分享
B站不支持产品保障
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
Lida
Model Number:
Steel Frame Warehouse
Product name:
steel structure
Main beams&Columns:
Q345 or Q235 H-section steel(painted or galvanized)
Structure:
Steel Structure
Wall:
sandwich panel or corrugated steel plate
Purlin:
C.Z Shape Steel Channel
Door:
Rolling Door
Application:
Storage Warehouse Structure
Color:
Client's Request
Size:
Costomers' Requirements
Certificate:
ISO9001:2008/BV/CE
Supply Ability
Supply Ability:
5000 Square Meter/Square Meters per Day steel structure

Easy installation real estate warehouses prefab steel structure for building

Product Description

 Easy installation real estate warehouses prefab steel structure for building

Characteristics:

1. Wide span: single span or multiple spans, the max span is 36m without middle column.

2. Low cost: Unit price range from USD35/m2 to USD100/m2 according to customer’s request.

3. Fast construction and easy installation.

4. Long using life: up to 50 years.

5. Others: environmental protection, stable structure, earthquake resistance, water proofing, and energy conserving.



Materials:

1. The main frame (columns and beams) is made of welded H-style steel.

2. The columns are connected with the foundation by pre-embedding anchor bolt.

3. The beams and columns, beams and beams are connected with high intensity bolts.

4. The envelop construction net is made of cold form C-style purlins.

5. The wall and roof are made of color steel board or color steel sandwich panels, which are connected with the purlin by Self-tapping nails.

6. Doors and windows can be designed at anywhere which can be made into normal type, sliding type or roll up type with material of PVC, metal, alloy aluminium, sandwich panel and so on.



1. Steel Structure Buildings Introduction:

Light steel structure building is widely used as large factory, warehouse, workshops, bridges, stadiums and other buildings. Light steel structure warehouse building is a new type of building structure system, which is formed by the main steel framework linking up H-section, Z-section, and U-section steel components, roof and walls using a variety of panels and other components such as windows and doors.



2. Steel Structure Buildings Characteristics:

1.Wide span: single span or multiple spans, the max span is 36m without middle column
2.Low cost: unit price range from USD35/m2 to USD70/m2 according to customers request
3. Fast construction and easy installation
4. Long using lifespan: up to 50 years
5.Others: environmental protection, stable structure, earthquake resistance, water proofing, and energy conserving.

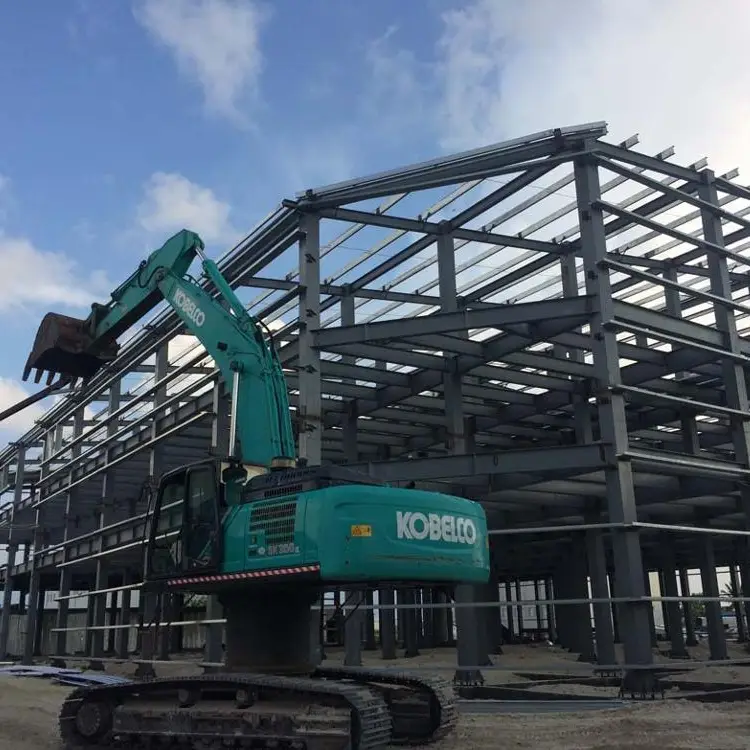

product display



prefabricated house











Main steel frame



H-section steel

Q345 steel 8mm to 10mm

Welding

Automatic Submerged Arc Welding

Rust removing

Sand blasting

surface processing

Alkyd Paint or galvanized

High strength bolt

Grade 10.9

Supporting system





Angle brace

L50x4,Steel Q235,Process and painting

Cross bracing

dia.20 round bar,Steel Q235, process and painting

Tie bar

dia.89*3 round pipe,Steel Q235 Process and painting

Batter brace

dia.12 round bar,Steel Q235 process and painting

Ordinary bolt

Galvanized bolt

Roof





Purlin

C160*60*2.5,steel Q235,Painting or galvanized

Out-roof panel

Sandwich panel or corrugated steel plate

Transparent skylight

6mm thick PVC

Accessories

Sealant,self-tapping screw, etc.

Edge cover

Made of color steel sheet thickness 0.5mm

Gutter

Made of steel sheet thickness 0.8mm, or PVC

Rinspout

dia.110 PVC

Wall



Purlin

C160*60*2.5,steel Q235,paint

Wall panel

Sandwich panel or corrugated steel plate

Accessories

Sealant,self-tapping screw etc

Edge cover

Made of color steel sheet thickness 0.5mm

Ventilator



unpowered axial-flow ventilator or monitor roof

Door &  window



Rolling door/sliding door, PVC/alu. alloy window

Crane



With or without crane, ranging from 5 tons to 20 tons

Related Products



Company Information









FAQ


Q: Are you factory or trading company?

A: Our Lida Group have main factory named Weifang Henglida Steel structure Co., Ltd., which is in Weifang city. Qingdao Lida construction Facility Co., Ltd. is in Qingdao city. Shouguang Lida Prefab House Factory is in Shouguang city, all of them are in Shandong province.



Q: How about your production capacity?

A: Pre engineered steel structure building (warehouse/workshop/hangar/shed/high rise apartment): 50000 sqm monthly. Prefabricated house (portacabin/labor camp/site office): 100000 sqm monthly. Prefab affordable house (low cost family/residential/refugee): 4200 units monthly. Container house: 800 units monthly. Light steel villa: 10000 sqm monthly.



Q: How about your quality control?

A: We have got certificate ISO9001:2015, certificate CE EN 1090. Products processing through cutting, bending, welding, shot blasting, ultrasonic testing, packing, storing, loading to ensure no quality defects.



Q: Is third party inspection available?

A: SGS, BV, TUV, etc. are available, it is according to client requirement.



Q: How about your delivery time?

A: Generally within 30 days, it is according to order quantity, partial shipment is allowed for big order.



Q: What about the installation?

A: We'll provide the detailed installation drawing, supervisors guiding installation is available. We can do turnkey job for some kind of projects.



Q: How to ensure the product you supply is what we want exactly?

A: Before placing order, our sales and engineers team will provide you the suitable solution according to your requirements. Proposal drawing, Shop drawing, 3D drawing, Materials photos, Finished projects photos are available, which will help you understand the solution we provided deeply.



The product makes buildings more energy efficient through proper, adequate insulation, and air sealing, which helps people save a lot of energy costs. This product features level A fire protection grade. The product has greatly helped my building project stand out in the crowd. I love its eye-catching shapes and appearances. - Said one of our customers. This product features level A fire protection grade.
