2020 gable frame light metal building prefabricated industrial steel structure warehouse

这里可以自定义设置
2020 gable frame light metal building prefabricated industrial steel structure warehouse
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷
暂无分享
B站不支持产品保障
Overview
Quick Details
Standard:
AiSi, ASTM, bs, DIN, GB, JIS
Grade:
Q235 Q345B
Place of Origin:
Shandong, China
Brand Name:
Lida
Model Number:
LSS-007
Type:
Light
Application:
Steel Workshop
Tolerance:
±1%
H-section steel:
Q345 steel 8mm to 10mm
Welding:
Automatic Submerged Arc Welding
Rust removing:
Sand blasting
surface processing:
Alkyd Paint or galvanized
High strength bolt:
Grade 10.9
Angle brace:
L50x4,Steel Q235,Process and painting
Cross bracing:
dia.20 round bar,Steel Q235, process and painting
Tie bar:
dia.89*3 round pipe,Steel Q235 Process and painting
Batter brace:
dia.12 round bar,Steel Q235 process and painting
Ordinary bolt:
Galvanized bolt
Supply Ability
Supply Ability:
2000 Square Meter/Square Meters per Month steel structure warehouse







1. Steel Structure Buildings Introduction:

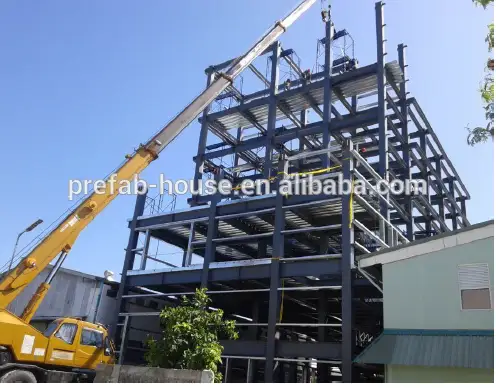

Light steel structure building is widely used as large factory, warehouse, workshops, bridges, stadiums and other buildings. Light steel structure warehouse building is a new type of building structure system, which is formed by the main steel framework linking up H-section, Z-section, and U-section steel components, roof and walls using a variety of panels and other components such as windows and doors.

2. Steel Structure Buildings Characteristics:

1.Wide span: single span or multiple spans, the max span is 36m without middle column
2.Low cost: unit price range from USD35/m2 to USD70/m2 according to customers request
3. Fast construction and easy installation
4. Long using lifespan: up to 50 years
5.Others: environmental protection, stable structure, earthquake resistance, water proofing, and energy conserving.













3. Steel Structure Buildings Specification

Main steel frame

H-section steel



Q345 steel 8mm to 10mm

Welding



Automatic Submerged Arc Welding

Rust removing



Sand blasting

surface processing



Alkyd Paint or galvanized

High strength bolt



Grade 10.9

Supporting system

Angle brace



L50x4,Steel Q235,Process and painting

Cross bracing



dia.20 round bar,Steel Q235, process and painting

Tie bar



dia.89*3 round pipe,Steel Q235 Process and painting

Batter brace



dia.12 round bar,Steel Q235 process and painting

Ordinary bolt



Galvanized bolt

Roof

Purlin



C160*60*2.5,steel Q235,Painting or galvanized

Out-roof panel



Sandwich panel or corrugated steel plate

Transparent skylight



6mm thick PVC

Accessories



Sealant,self-tapping screw, etc.

Edge cover



Made of color steel sheet thickness 0.5mm

Gutter



Made of steel sheet thickness 0.8mm, or PVC

Rinspout



dia.110 PVC

Wall

Purlin



C160*60*2.5,steel Q235,paint



Wall panel



Sandwich panel or corrugated steel plate



Accessories



Sealant,self-tapping screw etc



Edge cover



Made of color steel sheet thickness 0.5mm

Ventilator





unpowered axial-flow ventilator or monitor roof

Door &  window





Rolling door/sliding door, PVC/alu. alloy window

Crane





With or without crane, ranging from 5 tons to 20 tons



Finished projects

We have recently finished the following project:

 1. 10000 M2 steel structure warehouse---Saudi Arabia

 2. 12050 M2 steel structure workshop--- The United Arab Emirates

 3. 14081 M2 steel structure supermarket--- The Republic of Djibouti

 4. 7200 M2 steel structure warehouse--- The United Kingdom of Great Britain and Northern Ireland

 5. 6000 M2 steel structure poultry---- The United Arab Emirates

 6. 3300 M2 pig shed---India

 7. 2250 M2 steel structure warehoue---Belgium

 8. 1500 M2 steel structure market---Ethiopia

 9. 702 M2 steel structure warehouse---Georgia

 10. 36 M2 garage---500 sets---Norway

 11. 20ft&40ft container house for U N project---Sudan

 12. 22 M2 temporary house---1000 sets---Philippines

 13. 200 M2 prefabricated labor camp---100 sets---Saudi Arabia

 14. 157 M2 prefabricated site office---36 sets---Malaysia

 15. 60 M2 prefabricated dormitory---2000 sets---Indonesia

IMPORTANT

 If you really interested, please give me the following information:
1. Dimension: Length, width, height, eave height, roof pitch, etc.
2. Doors and windows: Dimension, quantity, where to put them.
3. Local climate: Wind speed, snow load, etc.
4. Insulation material: Sandwich panel or steel sheet.
5. Crane beam: Do you need crane beam inside the steel structure?
6. Is there any materials that are not allowed to import into the country where the structure is planning to use?
7. If you have other requirements, such as fire proofing, isolated roof, etc, please also inform us.
8. It's better if you have your own drawings or pictures. Please send them to us.































The product is able to provide strong support for the building because it can withstand any kind of weather elements such as a hurricane. This product is able to go through heavy rains or hurricanes. The product is able to help improve the architectural appearances while improving the safety and durability of the buildings to provide a comfortable staying space. This product is able to go through heavy rains or hurricanes.
