6 floors warehouse prefab house multi story building

这里可以自定义设置
6 floors warehouse prefab house multi story building
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Warranty:
3 years
After-sale Service:
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
Project Solution Capability:
graphic design, 3D model design, Cross Categories Consolidation
Application:
Hotel, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Farmhouse, Courtyard
Place of Origin:
Shandong, China
Brand Name:
LIDA
Model Number:
LDS
Main frame:
Q345B,H/I section beam
Certificate:
CE EN1090,BV,ISO9001
Insulation:
50mm,75mm,100mm
Wall and roof:
sandwich panel or corrugated sheet
Max clear span:
36m
Max Life Time:
more than 50 years
Keywords:
Light Steel Structure
Supply Ability
Supply Ability:
500 Ton/Tons per Month

6 floors warehouse prefab house multi story building p





Product Description

Gable Frame Light Metal Building Prefabricated Industrial Steel Structure Warehouse

Materials:

1. The main frame (columns and beams) is made of welded H-style steel.

2. The columns are connected with the foundation by pre-embedding anchor bolt.

3. The beams and columns, beams and beams are connected with high intensity bolts.

4. The envelop construction net is made of cold form C-style purlins.

5. The wall and roof are made of color steel board or color steel sandwich panels, which are connected with the purlin by Self-tapping nails.

6. Doors and windows can be designed at anywhere which can be made into normal type, sliding type or roll up type with material of PVC, metal, alloy aluminium, sandwich panel and so on.



1. Steel Structure Buildings Introduction:

Light steel structure building is widely used as large factory, warehouse, workshops, bridges, stadiums and other buildings. Light steel structure warehouse building is a new type of building structure system, which is formed by the main steel framework linking up H-section, Z-section, and U-section steel components, roof and walls using a variety of panels and other components such as windows and doors.



2. Steel Structure Buildings Characteristics:

1.Wide span: single span or multiple spans, the max span is 36m without middle column
2.Low cost: unit price range from USD35/m2 to USD70/m2 according to customers request
3. Fast construction and easy installation
4. Long using lifespan: up to 50 years
5.Others: environmental protection, stable structure, earthquake resistance, water proofing, and energy conserving.



Multi story steel structure successful case:

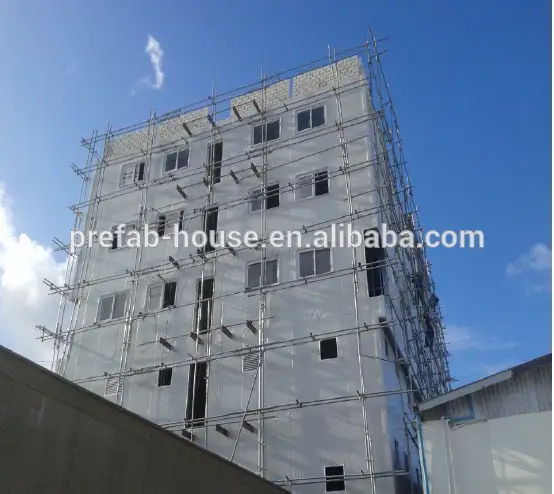

Maldives project
In 2015, Lida finished project for Ensis Group,which is the best fishing company in Maldives. Below is the details information for this project:
Project: Packing &Storage&Accommodation building
Sizes: Length:25.75m Width:13m Height: 22.5m
Level: 5 floors
Finished building pictures





Techology parameter



tructure     H-section steel Q345 steel H beam, Box column is also available
Welding Automatic Submerged Arc Welding
Rust removing Shot blasting
surface processing

twice primer and twice finish Alkyd Paint or hot dip

galvanized

High strength bolt Grade 10.9
Substructure     Angle brace L50x4,Steel Q235,Process and painting
Cross bracing Dia.20 round bar,Steel Q235, process and pre-galvanized
Tie bar

Dia.89*3 round pipe,Steel Q235 Process and painting

or pre-galvanized

Batter brace

Dia.12 round bar,Steel Q235 process and

pre-galvanized

Ordinary bolt Galvanized bolt
Roof       Purlin C channel or Z channel,steel Q235, galvanized
Roof panel

(50mm, 75mm, 100mm, 150mm) Sandwich panel or

corrugated GI color steel sheet

Transparent

skylight

1.2mm FRP
Accessories Sealant, self-tapping screw, etc.
Edge cover Made of color steel sheet
Gutter Made of steel sheet thickness 0.8mm, or PVC
Rinspout PVC pipe
Wall    Purlin C channel or Z channel, steel Q235, galvanized
Wall panel

(50mm, 75mm, 100mm, 150mm) Sandwich panel or

(0.4mm, 0.5mm, 0.6mm, 0.7mm) corrugated GI

color steel sheet

Accessories Sealant, self-tapping screw etc
Edge cover Made of GI color steel
Ventilator  unpowered axial-flow ventilator or monitor roof
Door & window  Electric rolling door/sliding door, PVC/Alu. alloy window
Crane  With or without crane, ranging from 5 tons to 20 tons



Related Products

Company Information


FAQ


Q: Are you factory or trading company?

A: Our Lida Group have main factory named Weifang Henglida Steel structure Co., Ltd., which is in Weifang city. Qingdao Lida construction Facility Co., Ltd. is in Qingdao city. Shouguang Lida Prefab House Factory is in Shouguang city, all of them are in Shandong province.



Q: How about your production capacity?

A: Pre engineered steel structure building (warehouse/workshop/hangar/shed/high rise apartment): 50000 sqm monthly. Prefabricated house (portacabin/labor camp/site office): 100000 sqm monthly. Prefab affordable house (low cost family/residential/refugee): 4200 units monthly. Container house: 800 units monthly. Light steel villa: 10000 sqm monthly.



Q: How about your quality control?

A: We have got certificate ISO9001:2015, certificate CE EN 1090. Products processing through cutting, bending, welding, shot blasting, ultrasonic testing, packing, storing, loading to ensure no quality defects.



Q: Is third party inspection available?

A: SGS, BV, TUV, etc. are available, it is according to client requirement.



Q: How about your delivery time?

A: Generally within 30 days, it is according to order quantity, partial shipment is allowed for big order.



Q: What about the installation?

A: We'll provide the detailed installation drawing, supervisors guiding installation is available. We can do turnkey job for some kind of projects.



Q: How to ensure the product you supply is what we want exactly?

A: Before placing order, our sales and engineers team will provide you the suitable solution according to your requirements. Proposal drawing, Shop drawing, 3D drawing, Materials photos, Finished projects photos are available, which will help you understand the solution we provided deeply.

The product makes buildings more energy efficient through proper, adequate insulation, and air sealing, which helps people save a lot of energy costs. This product features a stable structure, which is not easy to collapse. One of our buyers said that this product makes my building become more energy-efficient. It will help save my energy costs in the long term. This product features a stable structure, which is not easy to collapse.
