China famous best price mental steel structural project workshop/shed/warehosue for sale

这里可以自定义设置
China famous best price mental steel structural project workshop/shed/warehosue for sale
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Standard:
AiSi, ASTM, bs, DIN, GB, JIS
Grade:
Q235 Q345B
Place of Origin:
Shandong, China
Brand Name:
Lida
Model Number:
LSS-007
Type:
Light
Application:
Steel Workshop
Tolerance:
±1%
H-section steel:
Q345 steel 8mm to 10mm
Welding:
Automatic Submerged Arc Welding
Rust removing:
Sand blasting
surface processing:
Alkyd Paint or galvanized
High strength bolt:
Grade 10.9
Angle brace:
L50x4,Steel Q235,Process and painting
Cross bracing:
dia.20 round bar,Steel Q235, process and painting
Tie bar:
dia.89*3 round pipe,Steel Q235 Process and painting
Batter brace:
dia.12 round bar,Steel Q235 process and painting
Ordinary bolt:
Galvanized bolt
Supply Ability
Supply Ability:
2000 Square Meter/Square Meters per Month steel structure warehouse

Product Description









1. Steel Structure Buildings Introduction:

Light steel structure building is widely used as large factory, warehouse, workshops, bridges, stadiums and other buildings. Light steel structure warehouse building is a new type of building structure system, which is formed by the main steel framework linking up H-section, Z-section, and U-section steel components, roof and walls using a variety of panels and other components such as windows and doors.

2. Steel Structure Buildings Characteristics:

1.Wide span: single span or multiple spans, the max span is 36m without middle column
2.Low cost: unit price range from USD35/m2 to USD70/m2 according to customers request
3. Fast construction and easy installation
4. Long using lifespan: up to 50 years
5.Others: environmental protection, stable structure, earthquake resistance, water proofing, and energy conserving.





3. Steel Structure Buildings Specification

Main steel frame

H-section steel



Q345 steel 8mm to 10mm

Welding



Automatic Submerged Arc Welding

Rust removing



Sand blasting

surface processing



Alkyd Paint or galvanized

High strength bolt



Grade 10.9

Supporting system

Angle brace



L50x4,Steel Q235,Process and painting

Cross bracing



dia.20 round bar,Steel Q235, process and painting

Tie bar



dia.89*3 round pipe,Steel Q235 Process and painting

Batter brace



dia.12 round bar,Steel Q235 process and painting

Ordinary bolt



Galvanized bolt

Roof

Purlin



C160*60*2.5,steel Q235,Painting or galvanized

Out-roof panel



Sandwich panel or corrugated steel plate

Transparent skylight



6mm thick PVC

Accessories



Sealant,self-tapping screw, etc.

Edge cover



Made of color steel sheet thickness 0.5mm

Gutter



Made of steel sheet thickness 0.8mm, or PVC

Rinspout



dia.110 PVC

Wall

Purlin



C160*60*2.5,steel Q235,paint



Wall panel



Sandwich panel or corrugated steel plate



Accessories



Sealant,self-tapping screw etc



Edge cover



Made of color steel sheet thickness 0.5mm

Ventilator





unpowered axial-flow ventilator or monitor roof

Door &  window





Rolling door/sliding door, PVC/alu. alloy window

Crane





With or without crane, ranging from 5 tons to 20 tons

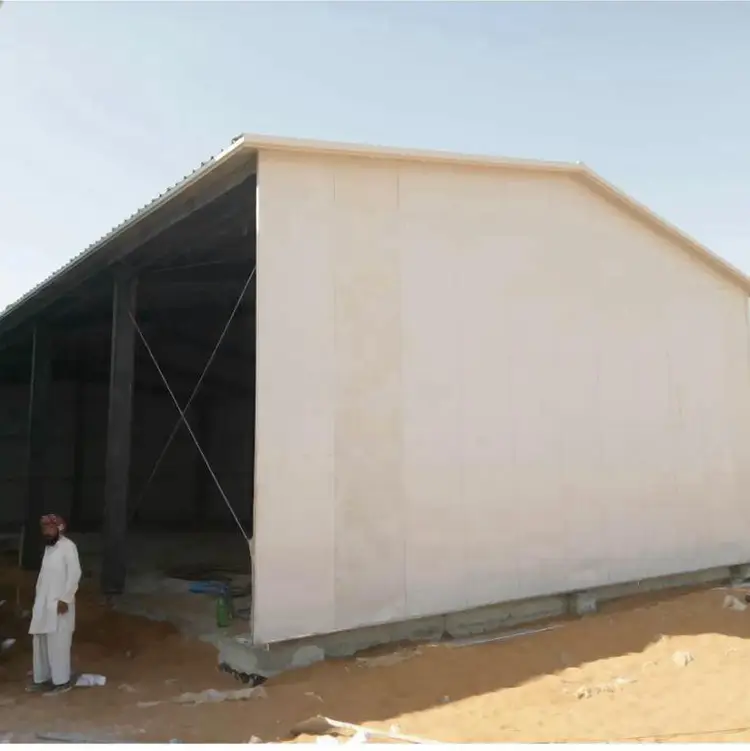

Finished projects

We have recently finished the following project:

 1. 10000 M2 steel structure warehouse---Saudi Arabia

 2. 12050 M2 steel structure workshop--- The United Arab Emirates

 3. 14081 M2 steel structure supermarket--- The Republic of Djibouti

 4. 7200 M2 steel structure warehouse--- The United Kingdom of Great Britain and Northern Ireland

 5. 6000 M2 steel structure poultry---- The United Arab Emirates

 6. 3300 M2 pig shed---India

 7. 2250 M2 steel structure warehoue---Belgium

 8. 1500 M2 steel structure market---Ethiopia

 9. 702 M2 steel structure warehouse---Georgia

 10. 36 M2 garage---500 sets---Norway

 11. 20ft&40ft container house for U N project---Sudan

 12. 22 M2 temporary house---1000 sets---Philippines

 13. 200 M2 prefabricated labor camp---100 sets---Saudi Arabia

 14. 157 M2 prefabricated site office---36 sets---Malaysia

 15. 60 M2 prefabricated dormitory---2000 sets---Indonesia

IMPORTANT

 If you really interested, please give me the following information:
1. Dimension: Length, width, height, eave height, roof pitch, etc.
2. Doors and windows: Dimension, quantity, where to put them.
3. Local climate: Wind speed, snow load, etc.
4. Insulation material: Sandwich panel or steel sheet.
5. Crane beam: Do you need crane beam inside the steel structure?
6. Is there any materials that are not allowed to import into the country where the structure is planning to use?
7. If you have other requirements, such as fire proofing, isolated roof, etc, please also inform us.
8. It's better if you have your own drawings or pictures. Please send them to us.











Related Products

Company Information


FAQ


Q: Are you factory or trading company?

A: Our Lida Group have main factory named Weifang Henglida Steel structure Co., Ltd., which is in Weifang city. Qingdao Lida construction Facility Co., Ltd. is in Qingdao city. Shouguang Lida Prefab House Factory is in Shouguang city, all of them are in Shandong province.



Q: How about your production capacity?

A: Pre engineered steel structure building (warehouse/workshop/hangar/shed/high rise apartment): 50000 sqm monthly. Prefabricated house (portacabin/labor camp/site office): 100000 sqm monthly. Prefab affordable house (low cost family/residential/refugee): 4200 units monthly. Container house: 800 units monthly. Light steel villa: 10000 sqm monthly.



Q: How about your quality control?

A: We have got certificate ISO9001:2015, certificate CE EN 1090. Products processing through cutting, bending, welding, shot blasting, ultrasonic testing, packing, storing, loading to ensure no quality defects.



Q: Is third party inspection available?

A: SGS, BV, TUV, etc. are available, it is according to client requirement.



Q: How about your delivery time?

A: Generally within 30 days, it is according to order quantity, partial shipment is allowed for big order.



Q: What about the installation?

A: We'll provide the detailed installation drawing, supervisors guiding installation is available. We can do turnkey job for some kind of projects.



Q: How to ensure the product you supply is what we want exactly?

A: Before placing order, our sales and engineers team will provide you the suitable solution according to your requirements. Proposal drawing, Shop drawing, 3D drawing, Materials photos, Finished projects photos are available, which will help you understand the solution we provided deeply.

The product is aesthetic enough to be constructed. It is able to offer a comfortable and healthy environment for people to stay in. Its coated steel materials make it highly corrosive. Most of the property developers praised that this product is outstanding and satisfying because it can ensure the strength and durability of the building projects that are constructed. Its coated steel materials make it highly corrosive.
