China long service life tiny homes prefabricated houses for South Africa

China long service life tiny homes prefabricated houses for South Africa

Add success, do you want to check your shopping cart?

Quick Details
Place of Origin:
Shandong, China
Brand Name:
Model Number:
LDAF 007
Hotel, House, Office, Sentry Box,Guard House, Shop, Toilet, Villa, affordable house, family house
tiny homes prefabricated houses for South Africa
tiny houses prefabricated
Structure frame:
cold formed galvanized light gauge steel, z275
1 or 2 storey are available
Wall panel:
ALC (Autoclaved Lightweight Concrete) panel, with paint
Roof panel:
glazed steel sheet tile
Ceiling insulation:
Fiber glass wool with aluminum foil
Service life:
at least 30 years
supplier sending work team is available
supplier could provide financing solution
Supply Ability
Supply Ability:
2000 Unit/Units per Month homes prefabricated houses

China long service life tiny homes prefabricated houses for South Africa



Product Description


Brief Description


LIDA affordable house is designed for low income family in developing countiries, or for the reconstruction in the countries which just experienced the war or natural disaster.

LIDA affordable house mainly include two parts system, first one is main structure frame, whis is produced by Q235 (steel grade) cold formed galvanized light gauge steel, the zinc layer is 275g/m2, has excelent performance of strength and anti-rust. The second one is wall and roof system, the wall panel is ALC (Autoclaved Lightweight Concrete) board, which performace is similar but better than concrete wall, the roof panel is Colored glazed steel tiles, which has good strength and anti rust performace, and ceiling has fiber galss wool (with aluminum foil) insulation.

Because of the low cost, fast installation, long service life, LIDA affordable house has become the best solution for solving house demand of low income family.


Detailed Specification



Main structure frameC89, Q235 Steel, galvanized Cold Formed steel C channel
Roof and Wall system1) Roof panel: 0.5mm thickness prepainted galvanized glazed steel tiles (glazed shape)
2) Wall panel: 100mm ALC board, with paint
3) Ceiling insulation: 50mm fiber glass wool with Aluminum foil
Ceiling1) Ceiling for dry area: 6mm gypsum board or 12mm PVC board
2) Ceiling for wet area: 5mm calcium silicate board or 12mm PVC board
Door and Window1) Entry door: Steel Security Door
2) Inside door: Steel door or MDF door
3) Window: PVC casement window or sliding window, 4mm single glazed, double glazed is also available, with mosquito screen
Electric system1) Electric wire: lighting 2.5mm2, A/C: 4.0mm2, BV cable, solid core. Three different color
2) Light: double tube LED light, dome lamp, outdoor waterproof light
3) Switch: 1 gang and 2 gang Power distribution cabinet
4) Socket: 5 holes universal socket
5) Power distribution box: steel box+circuit breaker+earth leakage protective device
Plumbing1) Closestool: ceramic one-piece closestool, with hand shower
2) Washbasin: ceramic pedestal basin
3) Shower: shower head, shower tray, water mixing valve
4) Water pipe: inlet and outlet water pipe (PPR and UPVC)



ALC panel parameter


Thermal insulationLow thermal conductivity, thermal conductivity ≤ 0.14W / m.k. Insulation is 10 times the cement concrete, performance of 125mm thick ALC panel equivalent to that of 370mm brick wall

Fire Performance

Wall TH (mm)

Fire resistance (hour)

Sound insulation

wall thickness and surface processing method

Weighted volume (B)

100mm ALC panel + double side putty40.8
125mm ALC panel + double side putty45.1
150mm ALC panel + double side putty46.6
Light weight and high strength

Density rating


Oven-dry density



Strength level



Low dry shrinkage rate

Material drying shrinkage rate of the good or bad depends on the inside the material after chemical reactions produced by the structure of the crystalline form, after using a special microscope observation proves that this product molecules is acicular crystal. Acicular crystals is the smallest drying shrinkage rate of material guarantee, the dry shrinkage rate of  this product tested  is 0.5 mm/m or less (standard: 0.8 mm/m or less).


ALC panel specification


Light gauge steel structure frame production

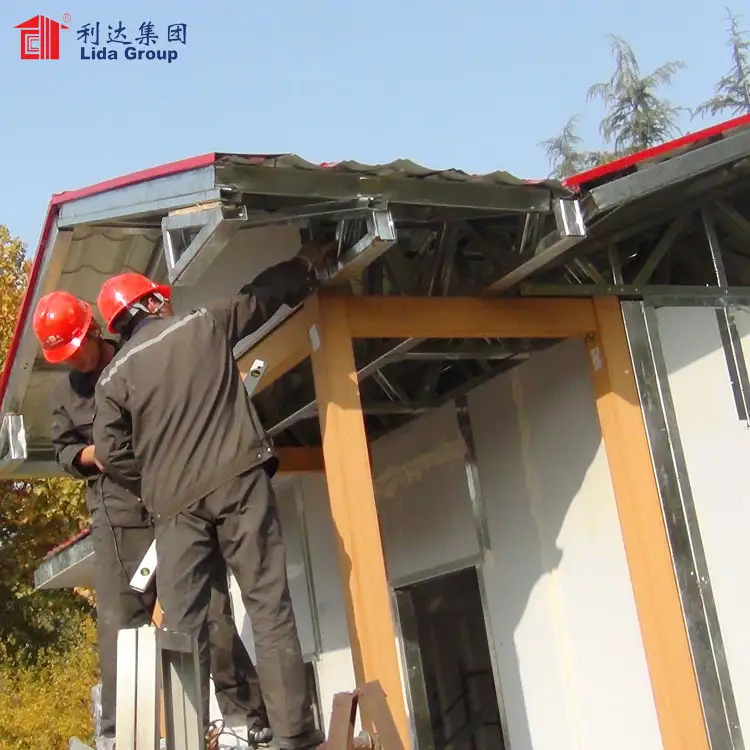

Installation Photos





Installation Video:

Please download the installation video from the following website:




Packaging & Shipping


Our Services

1) Professional sales team: all staff are bachelor and master, abroad team in Saudi Arabia, Qatar, Dubai, Kuwait, Maldives, Malaysia, Sri lanka, etc., provide the best communication.

2) Professional engineers team: all staff are master and doctor, provide the best engineering and solution.

3) Professional fabrication: all workers are through professional training, provide the quality guarantee products.

4) Professional installation team: supervisors guide installation from 2004 with rich experience.

5) Turnkey is also available for some projects.

Company Information

Brief introduction:


Established in 1993, LIDA Group -Weifang Henglida Steel Structure Co., Ltd is one of the biggest manufacturer of prefabricated building in China, We have been awarded ISO9001-2000, CE and SGS certficates.

750 employees, including 50 engineers and 200 workers in charge of supervising overseas projects.

83000sqm meters of factory space.

5 production lines for our prefabricated house series.

5 production lines for our container house series.

3 production lines for our steel structure warehouse/workshop series

1 production line for our light steel Villa series


Our Team


Customer Visit



Production line









Q: Are you factory or trading company?

A: Our Lida Group have main factory named Weifang Henglida Steel structure Co., Ltd., which is in Weifang city. Qingdao Lida construction Facility Co., Ltd. is in Qingdao city. Shouguang Lida Prefab House Factory is in Shouguang city, all of them are in Shandong province.


Q: How about your production capacity?

A: Pre engineered steel structure building (warehouse/workshop/hangar/shed/high rise apartment): 50000 sqm monthly. Prefabricated house (portacabin/labor camp/site office): 100000 sqm monthly. Prefab affordable house (low cost family/residential/refugee): 4200 units monthly. Flat pack container house: 800 units monthly. Light steel villa: 10000 sqm monthly.


Q: How about your quality control?

A: We have got certificate ISO9001:2015, certificate CE EN 1090. Products processing through cutting, bending, welding, shot blasting, ultrasonic testing, packing, storing, loading to ensure no quality defects.


Q: Is third party inspection available?

A: SGS, BV, TUV, etc. are available, it is according to client requirement.


Q: How about your delivery time?

A: Generally within 30 days, it is according to order quantity, partial shipment is allowed for big order.


Q: What about the installation?

A: We'll provide the detailed installation drawing, supervisors guiding installation is available. We can do turnkey job for some kind of projects.


Q: How to ensure the product you supply is what we want exactly?

A: Before placing order, our sales and engineers team will provide you the suitable solution according to your requirements. Proposal drawing, Shop drawing, 3D drawing, Materials photos, Finished projects photos are available, which will help you understand the solution we provided deeply.
