Overview

Quick Details

Warranty:: 3 years

After-sale Service:: Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement

Project Solution Capability:: graphic design, 3D model design, Cross Categories Consolidation

Application:: Warehouse, Workshop

Place of Origin:: Shandong, China

Brand Name:: LIDA

Model Number:: LDS

Main frame:: Q345B,H/I section beam

Certificate:: CE EN1090,BV,SGS,ISO9001

Insulation:: 50mm,75mm,100mm

Wall and roof:: sandwich panel or corrugated sheet

Max clear span:: 36m

Max Life Time:: more than 50 years

Keywords:: steel structure chicken farm

Supply Ability

Supply Ability:: 500 Ton/Tons per Month

Environmental Control Low Price Modern Poultry House Buildingg

Specifications:
1) Main Steel: Q345, Q235, Q345B, Q235B etc.
2) Column & Beam: Welded or Hot rolled H-section
3) Connection method of steel structure: welding connection or bolt connection
4) Wall & Roof: EPS, Rockwool, PU sandwich, corrugated steel sheet
5) Door: Rolled up door or Sliding door
6) Window: Plastic steel or Aluminum alloy window
7) Surface: Hot dip galvanized or painted
8) Crane: 5MT, 10MT, 15MT and more

Drawings & Quotation:
1) Customized design is welcomed.
2) In order to give you an exactly quotation and drawings, please let us know length, width, eave height and local weather. We will quote for you promptly.

Engineering Design Softwares:
AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel)V12.0.etc

Product Description

I. Description:
Lida Light steel structure building is a new type of building structure system, The building structure system is formed by the main steel framework through linking up H section, C section, Z section or U section steel components. Maintenance system uses different kinds of panels as wall and roof together with other components such as windows and doors. Lida light steel structure building is widely used in large factories, warehouses, workshops, bridges, stadiums and other buildings.
II. Characteristics:
1. Wide span: single span or multiple spans, the max span clear distance is 36m, without middle columns. 2. Low cost: unit price range from USD35 to USD70/square meter FOB according to customer’s request. 3. Fast construction and easy in installation 4. Long term service life: more than 50 years. 5. Other characteristics: environmental protection, stable structure, earthquake resistance, water proofing, and energy saving.
III. Main parts of the steel structure building:
Light steel structural Main Steel Frame	H section steel	Q345 steel 8mm/10mm Galvanized or Painting
	Cross Support	Φ20, Steel Q235, Galvanized
	Belt Bar	Φ89*3, Steel Q235 Galvanized
	Small Brace	Φ12,Steel Q235 Galvanized
	Ordinary Bolt	Galvanized Bolt
roof	Purlin	C160602,Steel Q235, Galvanized
	Out-roof Panel	Sandwich Panel or corrugated steel sheet
	FRP daylighting board	thickness 1.2mm
	Accessories	Glass glue, self-tapping screw etc.
	Edge Cover	Made of color steel sheet thickness 0.5mm
	Gutter	Made of steel sheet thickness 0.8mm
	Rainspout	Φ110 PVC
wall	Purlin	C160602.5, Steel Q235, Galvanized
	Wall	sandwich panel or corrugated steel sheet
	Accessories	Glass glue, Self-tapping Screw etc.
	Edge Cover	Made of color steel sheet thickness 0.4mm
	Axial fan	Axial Fan
Door	sliding door or Rolling shutter door
Window	PVC or Aluminium alloy
Crane	With or without crane in 5 tons to 20 tons

Quotation

Our excellent design team will design the steel structure workshop warehouse for you. If you give the following information, we will give you an satisfactory drawing.

1. Location (Where will be built): _______Country _______ area
2. Size ( length* width* height ):_______ m* _______ m* _______ m*
3. Wind speed: _______ KM/H
4. Snow load:_______ KG/m²
5. Rain load: _______ KG/m²
6. Anti-earthquake: _______ level
7. Brickwall need or not? If yes, 1.2m high or 1.5m high?
8. Thermal insulation: If yes, fiberglass wool, rock wool, PU sandwich panels will be suggested; if not, the metal steels will be ok. The cost of the latter will be much lower than that of the former.
9. Door quantity & size:_______ units_______ (width)m_______ (height)m
10. Window quantity & size:_______ units_______ (width)m _______ (height)m
11. Crane needed or not: If yes,_______ units, crane max lift height_______ m, max lift capacity tons_______, max wheel pressure and min wheel pressure!

Project Show

Main Mareial

Stable steel frame

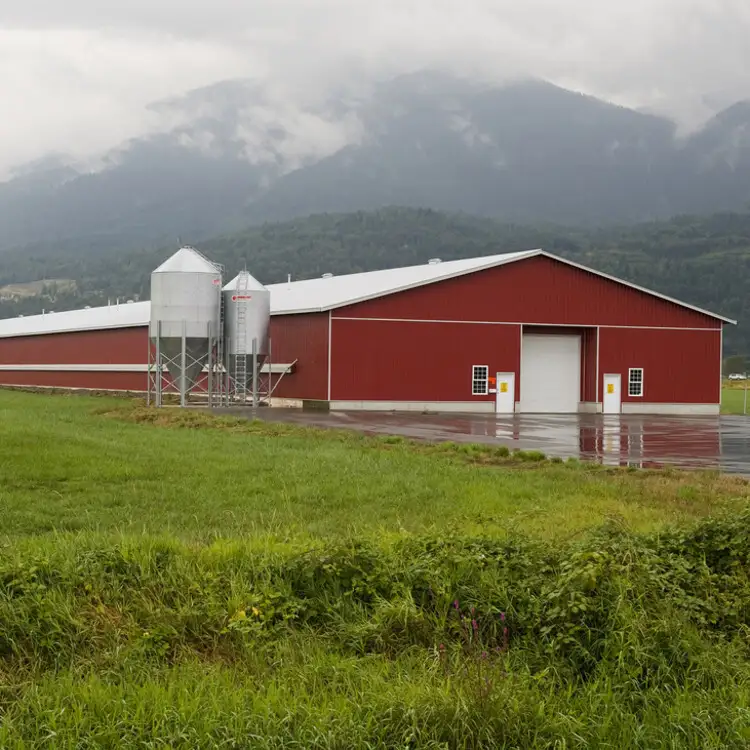

Environmental Control Low Price Modern Poultry House Building
