Industrial workshop plant light steel frame building

这里可以自定义设置

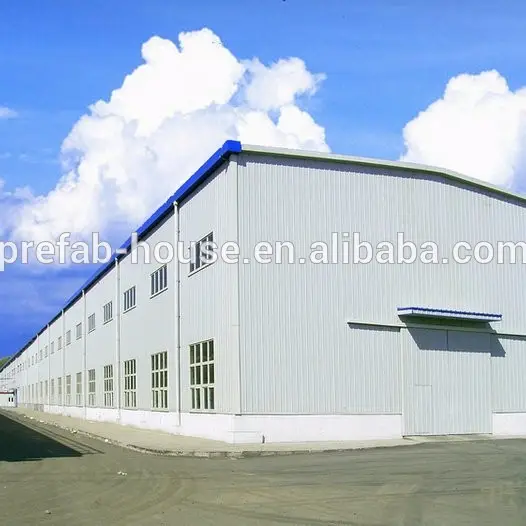

Industrial workshop plant light steel frame building
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
LIDA
Model Number:
001
Material:
Steel
Use:
Warehouse, Workshop,Plant
Supply Ability
Supply Ability:
5 Unit/Units per Month Industrial workshop plant light steel frame building
Industrial workshop plant light steel frame building
John Xu
whatsapp: +966 530585209
john.xuatlidajituan.com
Product Description





I. Description:

Light steel structure building is a new type of building structure system, which is formed by the main steel framework linking up H section, Z section and U section steel components, roof and walls using a variety of panels and other components such as windows, doors, cranes, etc. Light steel structure building is widely used in warehouses, workshops, large factories, etc.



II. Characteristics:

1. Wide span: single span or multiple spans, the max span clear distance is 36m, without middle columns.

2. Low cost: unit price range from USD35 to USD70/square meter FOB according to customer’s request.

3. Fast construction and easy installation

4. Long term service life: more than 50 years.

5. Other characteristics: environmental protection, stable structure, earthquake resistance, water proofing, and energy saving.





III. Materials:

The main frame (columns and beams)is made of welded H-style steel.

The columns are connected to the foundation by pre-embeddding anchor bolt.

The beams and columns, beams and beams are conncted with high intensity bolts.

The wall and roof are made of color steel board or color steel sandwich panels, which are connected with the purlin by self-tapping nails.

Doors and windows can be designed at anywhere which can be made into normal type, sliding type or roll up type with material of PVC, metal, alloy aluminum, sandwich panel and others.



With the advantage of good cost performance, the product can be extensively applied in various fields. This product has low demands for the subgrade. The application result shows that this product is of practical use. This product has low demands for the subgrade.
