large span automatic poultry farm design for broiler chicken

这里可以自定义设置

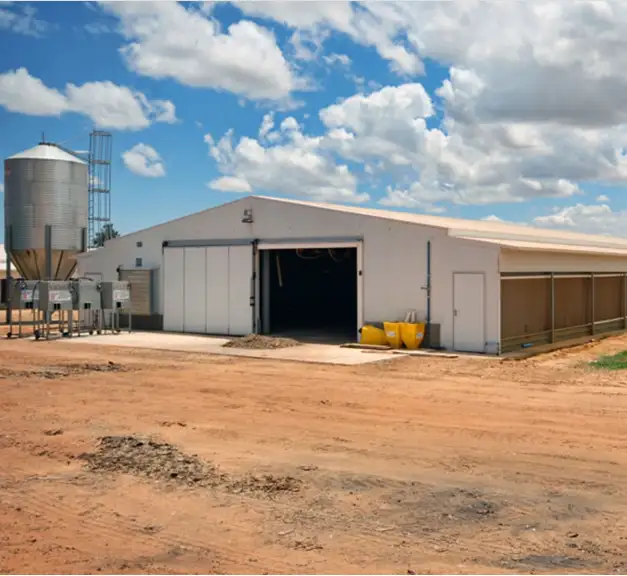

large span automatic poultry farm design for broiler chicken
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Warranty:
3 years
After-sale Service:
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
Project Solution Capability:
graphic design, 3D model design, Cross Categories Consolidation
Application:
Warehouse, Workshop
Place of Origin:
Shandong, China
Brand Name:
LIDA
Model Number:
LDS
Main frame:
Q345B,H/I section beam
Certificate:
CE EN1090,BV,SGS,ISO9001
Insulation:
50mm,75mm,100mm
Wall and roof:
sandwich panel or corrugated sheet
Max clear span:
36m
Max Life Time:
more than 50 years
Keywords:
steel structure chicken farm
Supply Ability
Supply Ability:
500 Ton/Tons per Month

large span automatic poultry farm design for broiler chicken





Specifications:
1) Main Steel: Q345, Q235, Q345B, Q235B etc.
2) Column & Beam: Welded or Hot rolled H-section
3) Connection method of steel structure: welding connection or bolt connection
4) Wall & Roof: EPS, Rockwool, PU sandwich, corrugated steel sheet
5) Door: Rolled up door or Sliding door
6) Window: Plastic steel or Aluminum alloy window
7) Surface: Hot dip galvanized or painted
8) Crane: 5MT, 10MT, 15MT and more

Drawings & Quotation:
1) Customized design is welcomed.
2) In order to give you an exactly quotation and drawings, please let us know length, width, eave height and local weather. We will quote for you promptly.

Engineering Design Softwares:
AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel)V12.0.etc


Design Capability:



By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) and etc. we can design complex industrial building like, poultry houses (broiler house, layer house), cowshed, pig house...


Product Description



I. Description:

Lida Light steel structure building is a new type of building structure system, The building structure system is formed by the main steel framework through linking up H section, C section, Z section or U section steel components. Maintenance system uses different kinds of panels as wall and roof together with other components such as windows and doors.
Lida light steel structure building is widely used in large factories, warehouses, workshops, bridges, stadiums and other buildings.

II. Characteristics:

1. Wide span: single span or multiple spans, the max span clear distance is 36m, without middle columns.
2. Low cost: unit price range from USD35 to USD70/square meter FOB according to customer’s request.
3. Fast construction and easy in installation
4. Long term service life: more than 50 years.
5. Other characteristics: environmental protection, stable structure, earthquake resistance, water proofing, and energy saving.

III. Main parts of the steel structure building:

   Light steel structural

   Main Steel Frame

H section steel

Q345 steel 8mm/10mm

Galvanized or Painting

Cross Support

Φ20, Steel Q235,

Galvanized

Belt Bar

Φ89*3, Steel Q235

Galvanized

Small Brace

Φ12,Steel Q235

Galvanized

Ordinary Bolt Galvanized Bolt

roof

Purlin

C160*60*2,Steel Q235,

 Galvanized

Out-roof Panel

Sandwich Panel or

corrugated steel sheet

FRP daylighting board

thickness 1.2mm

Accessories

Glass glue,

self-tapping screw etc.

Edge Cover

Made of color steel sheet

thickness 0.5mm

Gutter

Made of steel sheet

thickness 0.8mm

Rainspout

Φ110 PVC
wall

Purlin

C160*60*2.5,

Steel Q235, Galvanized

Wall

sandwich panel or

corrugated steel sheet

Accessories

Glass glue,

Self-tapping Screw etc.

Edge Cover

Made of color steel sheet

thickness 0.4mm

Axial fan Axial Fan
Door

sliding door or Rolling shutter door

Window PVC or Aluminium alloy
Crane With or without crane in 5 tons to 20 tons




Quotation

Our excellent design team will design the steel structure workshop warehouse for you. If you give the following information, we will give you an satisfactory drawing.

1. Location (Where will be built): _______Country _______ area
2. Size ( length* width* height ):_______ m* _______ m* _______ m*
3. Wind speed: _______ KM/H
4. Snow load:_______ KG/m²
5. Rain load: _______ KG/m²
6. Anti-earthquake: _______ level
7. Brickwall need or not? If yes, 1.2m high or 1.5m high?
8. Thermal insulation: If yes, fiberglass wool, rock wool, PU sandwich panels will be suggested; if not, the metal steels will be ok. The cost of the latter will be much lower than that of the former.
9. Door quantity & size:_______ units_______ (width)m_______ (height)m
10. Window quantity & size:_______ units_______ (width)m _______ (height)m
11. Crane needed or not: If yes,_______ units, crane max lift height_______ m, max lift capacity tons_______, max wheel pressure and min wheel pressure!

And you are warmly welcomed to vist our factory!

Project Show



Main Mareial

Stable steel frame







Company Information

  We Weifang Henglida Steel Structure Co.,Ltd.( Lida Group)  is one of the largest manufacturers of the prefabricated house, Flat Pack container house, steel villas, and steel structure warehouse in China. We have been doing well in this field for more than 20 years, and we have exported our products to more than 110 countries as well as our domestic market  with  ISO9001, CE ,BVand SGS approval.
