large span steel space frame structure warehouse

这里可以自定义设置
large span steel space frame structure warehouse
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Standard:
AiSi, ASTM, bs, DIN, GB, JIS
Grade:
Q345 low alloy steel
Place of Origin:
Shandong, China
Brand Name:
LIDA
Model Number:
S061
Type:
Light
Application:
Steel Workshop
Tolerance:
±1%
Processing Service:
Bending, Welding, Cutting, Punching
Item:
steel structure hotel building, prefabricated steel apartment building
Keywords:
steel metal frame structure
Purlin:
C.Z Shape Steel Channel
Wall and Roof:
Rock wool/Glass wool/EPS/PU sandwich panel
Certificates:
ISO 9001, CE EN1090,
Surface treatment:
Hot Dip Gavalnized or Alkyd painting
Service life:
70 years
Installation:
supervisor guiding is available
Door:
Sliding door or electricl rolling door
Span:
Single span 36m without central column
Supply Ability
Supply Ability:
50000 Square Meter/Square Meters per Month permanent building



Large span steel space frame structure building

Product Description



Description:



1)Product Description:
Light steel structure building is a new type of building structure system, which is formed by the main steel framework linking up H-section, Z-section, and U-section steel components, roof, and walls using a variety of panels and other components such as windows and doors. Light steel structure building is widely used in warehouses, workshops, supermarkets, Aircraft hanger, poultry farms, large factories, and so on.

Our Weifang Henglida Steel Structure Co., Ltd, is a professional manufacturer for steel frame workshop and steel structure house & assorted materials products. Our steel structure buildings have exported to over 140 countries, including France, Slovenia,  Croatia, Poland,  Kenya, Saudi Arabia, Afghanistan, Hungary, Rumania, Brazil, South Africa, Chile, Angola, UAE, Bahrain., etc.

2)Steel structure warehouse Characteristics:
1.Wide-span: single span or multiple spans, the max span is 36m without the middle column.
2.Low cost: Unit price range from USD35/m2 to USD70/m2 according to customers' request.
3.Fast construction and easy installation, at least one-third shorter than traditional building
4. Long using life: up to 70 years, permanent building.
5.Energy-saving: better thermal preservation performance using the sandwich panel
6.
Earthquake resistance: Grade 8
7.Wind resistance: designed to resistant the hurricane/typhoon
8.Others: environmental protection, stable structure, waterproofing


3)Steel structure warehouse Materials:
1. The mainframe (columns and beams) is made of welded H-style steel.

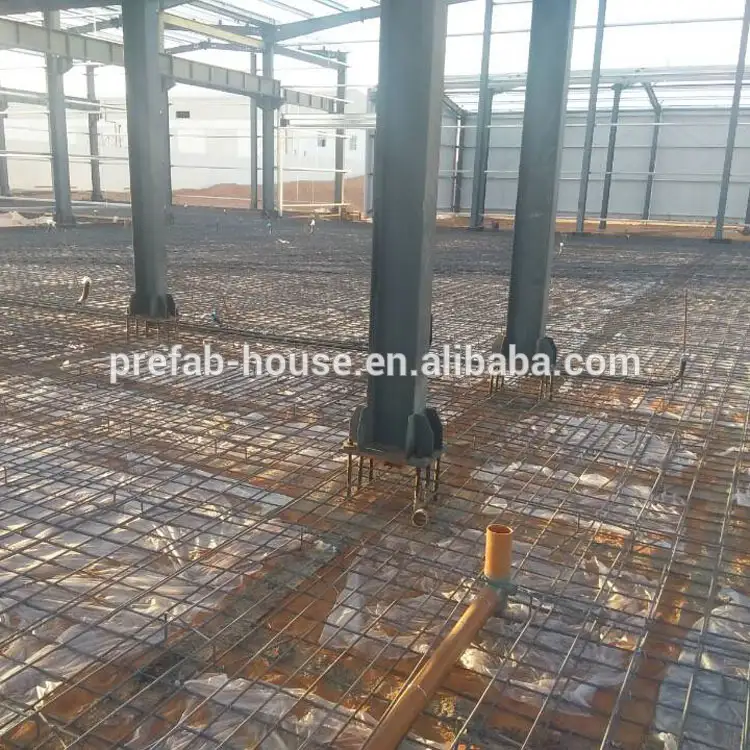

2. The columns are connected with the foundation by pre-embedding anchor bolt.
3. The beams and columns, beams, and beams are connected with high-intensity bolts.
4. The envelope construction net is made of cold form C-style purlins.
5. The wall and roof are made of color steel board or color steel sandwich panels, which are connected with the purlin by Self-tapping nails.
6. Doors and windows can be designed anywhere which can be made into normal type, sliding type or roll up type with material of PVC, metal, alloy aluminum, sandwich panel, and so on.

Main structure

H-section steel

Q345 steel H beam, Box column is also available
Welding Automatic Submerged Arc Welding
Rust removing Shot blasting
surface processing twice primer and twice finish Alkyd Paint or hot dip galvanized
High strength bolt Grade 10.9
Substructure Angle brace L50x4, Steel Q235, Process, and painting
Cross bracing Dia.20 round bar, Steel Q235, process and pre-galvanized
Tie bar Dia.89*3 round pipe, Steel Q235 Process, and painting or pre-galvanized
Batter brace Dia.12 round bar, Steel Q235 process and pre-galvanized
Ordinary bolt Galvanized bolt
Roof Purlin C channel or Z channel, steel Q235, galvanized
Roof panel (50mm, 75mm, 100mm, 150mm) Sandwich panel or corrugated GI color steel sheet
Transparent skylight 1.2mm FRP
Accessories Sealant, self-tapping screw, etc.
Edge cover Made of color steel sheet
Gutter Made of steel sheet thickness 0.8mm, or PVC
Rinspout PVC pipe
Wall Purlin C channel or Z channel, steel Q235, galvanized
Wall panel (50mm, 75mm, 100mm, 150mm) Sandwich panel or (0.4mm, 0.5mm, 0.6mm, 0.7mm) corrugated GI color steel sheet
Accessories Sealant, self-tapping screw, etc
Edge cover Made of GI color steel
Ventilator   unpowered axial-flow ventilator or monitor roof
Door & window   Electric rolling door/sliding door, PVC/Alu. alloy window
Crane   With or without crane, ranging from 5 tons to 20 tons







product display











Related Products



Company Information







FAQ


Q: Are you factory or trading company?

A: Our Lida Group have main factory named Weifang Henglida Steel structure Co., Ltd., which is in Weifang city. Qingdao Lida construction Facility Co., Ltd. is in Qingdao city. Shouguang Lida Prefab House Factory is in Shouguang city, all of them are in Shandong province.



Q: How about your production capacity?

A: Pre engineered steel structure building (warehouse/workshop/hangar/shed/high rise apartment): 50000 sqm monthly. Prefabricated house (portacabin/labor camp/site office): 100000 sqm monthly. Prefab affordable house (low cost family/residential/refugee): 4200 units monthly. Container house: 800 units monthly. Light steel villa: 10000 sqm monthly.



Q: How about your quality control?

A: We have got certificate ISO9001:2015, certificate CE EN 1090. Products processing through cutting, bending, welding, shot blasting, ultrasonic testing, packing, storing, loading to ensure no quality defects.



Q: Is third party inspection available?

A: SGS, BV, TUV, etc. are available, it is according to client requirement.



Q: How about your delivery time?

A: Generally within 30 days, it is according to order quantity, partial shipment is allowed for big order.



Q: What about the installation?

A: We'll provide the detailed installation drawing, supervisors guiding installation is available. We can do turnkey job for some kind of projects.



Q: How to ensure the product you supply is what we want exactly?

A: Before placing order, our sales and engineers team will provide you the suitable solution according to your requirements. Proposal drawing, Shop drawing, 3D drawing, Materials photos, Finished projects photos are available, which will help you understand the solution we provided deeply.



The product is durable enough, so it can help minimize the loss of unexpected calamity accident to the utmost extent, such as hurricanes or flood. This product stands out for t its good waterproofness. The application of this product helps the building projects be capable of resisting damage caused by different weather factors such as a hurricane. This product stands out for t its good waterproofness.
