Low cost permanent prefab steel door structure multi storey warehouse 1
Low cost permanent prefab steel door structure multi storey warehouse 2
Low cost permanent prefab steel door structure multi storey warehouse 3
Low cost permanent prefab steel door structure multi storey warehouse 4
Low cost permanent prefab steel door structure multi storey warehouse 5
Low cost permanent prefab steel door structure multi storey warehouse 6
Low cost permanent prefab steel door structure multi storey warehouse 1
Low cost permanent prefab steel door structure multi storey warehouse 2
Low cost permanent prefab steel door structure multi storey warehouse 3
Low cost permanent prefab steel door structure multi storey warehouse 4
Low cost permanent prefab steel door structure multi storey warehouse 5
Low cost permanent prefab steel door structure multi storey warehouse 6

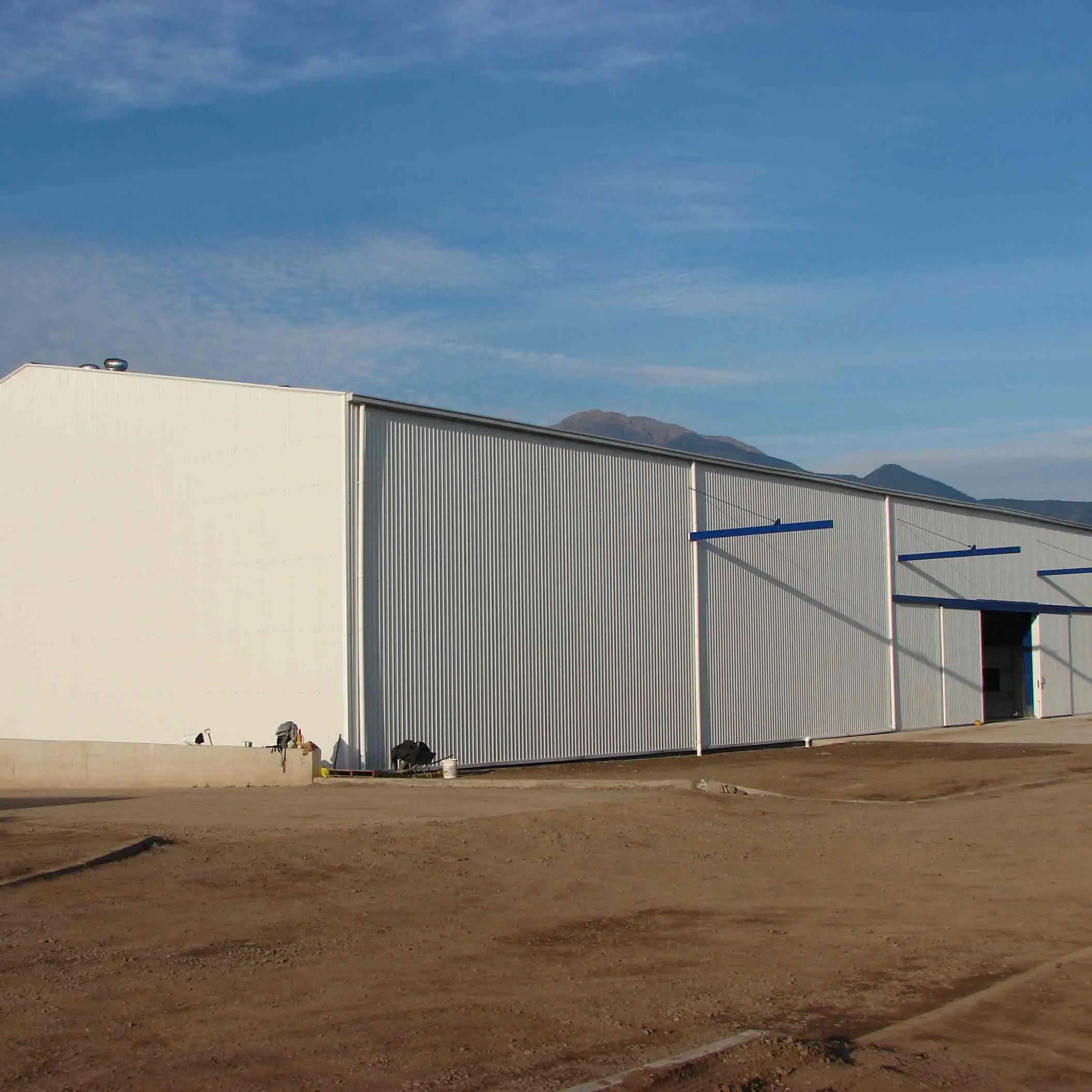

Low cost permanent prefab steel door structure multi storey warehouse

    oops...!

    no product data.

    Go to homepage
    Overview
    Quick Details
    Standard:
    AiSi, ASTM, bs, DIN, GB, JIS
    Grade:
    Q345 low alloy steel
    Place of Origin:
    Shandong, China
    Brand Name:
    LIDA
    Model Number:
    S061
    Type:
    Light
    Application:
    Steel Workshop
    Tolerance:
    ±1%
    Processing Service:
    Bending, Welding, Cutting, Punching
    Item:
    steel structure hotel building, prefabricated steel apartment building
    Keywords:
    steel metal frame structure
    Purlin:
    C.Z Shape Steel Channel
    Wall and Roof:
    Rock wool/Glass wool/EPS/PU sandwich panel
    Certificates:
    ISO 9001, CE EN1090, SGS
    Surface treatment:
    Hot Dip Gavalnized or Alkyd painting
    Service life:
    70 years
    Installation:
    supervisor guiding is available
    Door:
    Sliding door or electricl rolling door
    Span:
    Single span 36m without central column
    Supply Ability
    Supply Ability:
    50000 Square Meter/Square Meters per Month permanent building
    Video Description

    Low cost permanent prefab steel door structure multi storey warehouse 7

    Metal frame structure prefabricated steel apartment permanent building

    Product Description



    Low cost permanent prefab steel door structure multi storey warehouse 9

    Description:

    1, Prefabricated house is made of light steel as steel structure and sandwich panels for wall and roof

    2,The sandwich panels can be polystyrene, polyurethane, rock wool, and fiber glass sandwich panels for insulation

    3,The standard prefabricated house is made by 1.8m as one modular and components connected by bolts

    4,The house can be assembled and disassembled more than 6 times and the service lifespan is more than 20 years

    Characteristics:

    1,Environment protective, no garbage caused

    2,Doors, windows, and interior partitions can be flexibly fixed

    3,Beautiful appearance, different colors for the wall and roof

    4,Cost saving and transportation convenient

    5,Anti-rust and normally more than 15 years using lifespan

    6,Safe and stable, can stand 8 grade earthquake

    Technical parameter of standard prefabricated house:

    1,Wind resistance: grade 11 (wind speed≤111.5km/h)

    2,Earthquake resistance: grade 7

    3,Live load capacity of roofing: 0.5kN/m²

    4,External and internal wall heat transmission coefficient: 0.35Kcal/m2hc

    5,Second floor load capacity: 150kg/m²

    6,Live load of corridor: 2.0kN/m²

    7,We can design and produce the house according to customer’s request

    product display



    prefabricated house

    Low cost permanent prefab steel door structure multi storey warehouse 11Low cost permanent prefab steel door structure multi storey warehouse 13



    Low cost permanent prefab steel door structure multi storey warehouse 15



    Low cost permanent prefab steel door structure multi storey warehouse 17



    Low cost permanent prefab steel door structure multi storey warehouse 19



    Related Products

    Main structure

    H-section steel

    Q345 steel H beam, Box column is also available
    WeldingAutomatic Submerged Arc Welding
    Rust removingShot blasting
    surface processingtwice primer and twice finish Alkyd Paint or hot dip galvanized
    High strength boltGrade 10.9
    SubstructureAngle braceL50x4,Steel Q235,Process and painting
    Cross bracingDia.20 round bar,Steel Q235, process and pre-galvanized
    Tie barDia.89*3 round pipe,Steel Q235 Process and painting or pre-galvanized
    Batter braceDia.12 round bar,Steel Q235 process and pre-galvanized
    Ordinary boltGalvanized bolt
    RoofPurlinC channel or Z channel,steel Q235, galvanized
    Roof panel(50mm, 75mm, 100mm, 150mm) Sandwich panel or corrugated GI color steel sheet
    Transparent skylight1.2mm FRP
    AccessoriesSealant, self-tapping screw, etc.
    Edge coverMade of color steel sheet
    GutterMade of steel sheet thickness 0.8mm, or PVC
    RinspoutPVC pipe
    WallPurlinC channel or Z channel, steel Q235, galvanized
    Wall panel(50mm, 75mm, 100mm, 150mm) Sandwich panel or (0.4mm, 0.5mm, 0.6mm, 0.7mm) corrugated GI color steel sheet
    AccessoriesSealant, self-tapping screw etc
    Edge coverMade of GI color steel
    Ventilator unpowered axial-flow ventilator or monitor roof
    Door & window Electric rolling door/sliding door, PVC/Alu. alloy window
    Crane With or without crane, ranging from 5 tons to 20 tons



    Low cost permanent prefab steel door structure multi storey warehouse 21

    Company Information







    Low cost permanent prefab steel door structure multi storey warehouse 23Low cost permanent prefab steel door structure multi storey warehouse 25Low cost permanent prefab steel door structure multi storey warehouse 27



    FAQ


    Low cost permanent prefab steel door structure multi storey warehouse 29

    Q: Are you factory or trading company?

    A: Our Lida Group have main factory named Weifang Henglida Steel structure Co., Ltd., which is in Weifang city. Qingdao Lida construction Facility Co., Ltd. is in Qingdao city. Shouguang Lida Prefab House Factory is in Shouguang city, all of them are in Shandong province.



    Q: How about your production capacity?

    A: Pre engineered steel structure building (warehouse/workshop/hangar/shed/high rise apartment): 50000 sqm monthly. Prefabricated house (portacabin/labor camp/site office): 100000 sqm monthly. Prefab affordable house (low cost family/residential/refugee): 4200 units monthly. Container house: 800 units monthly. Light steel villa: 10000 sqm monthly.



    Q: How about your quality control?

    A: We have got certificate ISO9001:2015, certificate CE EN 1090. Products processing through cutting, bending, welding, shot blasting, ultrasonic testing, packing, storing, loading to ensure no quality defects.



    Q: Is third party inspection available?

    A: SGS, BV, TUV, etc. are available, it is according to client requirement.



    Q: How about your delivery time?

    A: Generally within 30 days, it is according to order quantity, partial shipment is allowed for big order.



    Q: What about the installation?

    A: We'll provide the detailed installation drawing, supervisors guiding installation is available. We can do turnkey job for some kind of projects.



    Q: How to ensure the product you supply is what we want exactly?

    A: Before placing order, our sales and engineers team will provide you the suitable solution according to your requirements. Proposal drawing, Shop drawing, 3D drawing, Materials photos, Finished projects photos are available, which will help you understand the solution we provided deeply.



    prefab house continues to reinforce its sales in emerging markets. Constructed from environmentally friendly materials, the product can be recycled. At the most competitive price, Lida Group recommends cost-effectiveprefab house for buyers. Constructed from environmentally friendly materials, the product can be recycled.
