Prefabricated steel structure building for warehouse

这里可以自定义设置

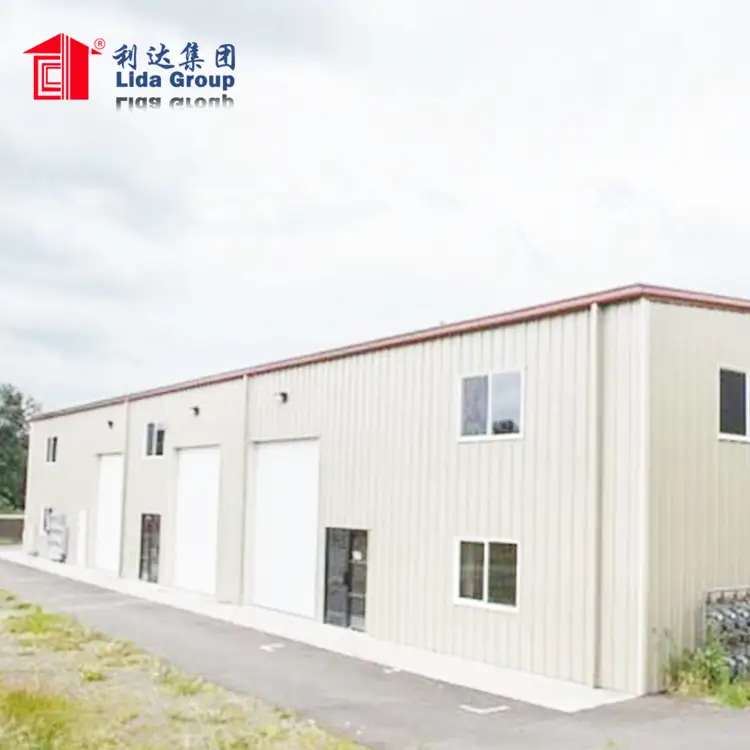

Prefabricated steel structure building for warehouse
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Standard:
AiSi, ASTM, bs, DIN, GB, JIS
Grade:
Q345 low alloy steel
Place of Origin:
Shandong, China
Brand Name:
LIDA
Model Number:
S061
Type:
Light
Application:
Steel Workshop
Tolerance:
±1%
Processing Service:
Bending, Welding, Cutting, Punching
Item:
steel structure hotel building, prefabricated steel apartment building
Keywords:
steel metal frame structure
Purlin:
C.Z Shape Steel Channel
Wall and Roof:
Rock wool/Glass wool/EPS/PU sandwich panel
Certificates:
ISO 9001, CE EN1090, SGS
Surface treatment:
Hot Dip Gavalnized or Alkyd painting
Service life:
70 years
Installation:
supervisor guiding is available
Door:
Sliding door or electricl rolling door
Span:
Single span 36m without central column
Supply Ability
Supply Ability:
50000 Square Meter/Square Meters per Month permanent building
Video Description

Metal frame structure prefabricated steel apartment permanent building

Product Description



Description:

1, Prefabricated house is made of light steel as steel structure and sandwich panels for wall and roof

2,The sandwich panels can be polystyrene, polyurethane, rock wool, and fiber glass sandwich panels for insulation

3,The standard prefabricated house is made by 1.8m as one modular and components connected by bolts

4,The house can be assembled and disassembled more than 6 times and the service lifespan is more than 20 years

Characteristics:

1,Environment protective, no garbage caused

2,Doors, windows, and interior partitions can be flexibly fixed

3,Beautiful appearance, different colors for the wall and roof

4,Cost saving and transportation convenient

5,Anti-rust and normally more than 15 years using lifespan

6,Safe and stable, can stand 8 grade earthquake

Technical parameter of standard prefabricated house:

1,Wind resistance: grade 11 (wind speed≤111.5km/h)

2,Earthquake resistance: grade 7

3,Live load capacity of roofing: 0.5kN/m²

4,External and internal wall heat transmission coefficient: 0.35Kcal/m2hc

5,Second floor load capacity: 150kg/m²

6,Live load of corridor: 2.0kN/m²

7,We can design and produce the house according to customer’s request

product display



prefabricated house









Related Products

Main structure

H-section steel

Q345 steel H beam, Box column is also available
WeldingAutomatic Submerged Arc Welding
Rust removingShot blasting
surface processingtwice primer and twice finish Alkyd Paint or hot dip galvanized
High strength boltGrade 10.9
SubstructureAngle braceL50x4,Steel Q235,Process and painting
Cross bracingDia.20 round bar,Steel Q235, process and pre-galvanized
Tie barDia.89*3 round pipe,Steel Q235 Process and painting or pre-galvanized
Batter braceDia.12 round bar,Steel Q235 process and pre-galvanized
Ordinary boltGalvanized bolt
RoofPurlinC channel or Z channel,steel Q235, galvanized
Roof panel(50mm, 75mm, 100mm, 150mm) Sandwich panel or corrugated GI color steel sheet
Transparent skylight1.2mm FRP
AccessoriesSealant, self-tapping screw, etc.
Edge coverMade of color steel sheet
GutterMade of steel sheet thickness 0.8mm, or PVC
RinspoutPVC pipe
WallPurlinC channel or Z channel, steel Q235, galvanized
Wall panel(50mm, 75mm, 100mm, 150mm) Sandwich panel or (0.4mm, 0.5mm, 0.6mm, 0.7mm) corrugated GI color steel sheet
AccessoriesSealant, self-tapping screw etc
Edge coverMade of GI color steel
Ventilator unpowered axial-flow ventilator or monitor roof
Door & window Electric rolling door/sliding door, PVC/Alu. alloy window
Crane With or without crane, ranging from 5 tons to 20 tons



Company Information









FAQ


Q: Are you factory or trading company?

A: Our Lida Group have main factory named Weifang Henglida Steel structure Co., Ltd., which is in Weifang city. Qingdao Lida construction Facility Co., Ltd. is in Qingdao city. Shouguang Lida Prefab House Factory is in Shouguang city, all of them are in Shandong province.



Q: How about your production capacity?

A: Pre engineered steel structure building (warehouse/workshop/hangar/shed/high rise apartment): 50000 sqm monthly. Prefabricated house (portacabin/labor camp/site office): 100000 sqm monthly. Prefab affordable house (low cost family/residential/refugee): 4200 units monthly. Container house: 800 units monthly. Light steel villa: 10000 sqm monthly.



Q: How about your quality control?

A: We have got certificate ISO9001:2015, certificate CE EN 1090. Products processing through cutting, bending, welding, shot blasting, ultrasonic testing, packing, storing, loading to ensure no quality defects.



Q: Is third party inspection available?

A: SGS, BV, TUV, etc. are available, it is according to client requirement.



Q: How about your delivery time?

A: Generally within 30 days, it is according to order quantity, partial shipment is allowed for big order.



Q: What about the installation?

A: We'll provide the detailed installation drawing, supervisors guiding installation is available. We can do turnkey job for some kind of projects.



Q: How to ensure the product you supply is what we want exactly?

A: Before placing order, our sales and engineers team will provide you the suitable solution according to your requirements. Proposal drawing, Shop drawing, 3D drawing, Materials photos, Finished projects photos are available, which will help you understand the solution we provided deeply.



Before shipment, Lida Group will conduct various types of tests to check quality of prefab house. This product is lightweight, reducing the hassle of shipping. Every procedure for production of prefab house reaches international standards. This product is lightweight, reducing the hassle of shipping.
