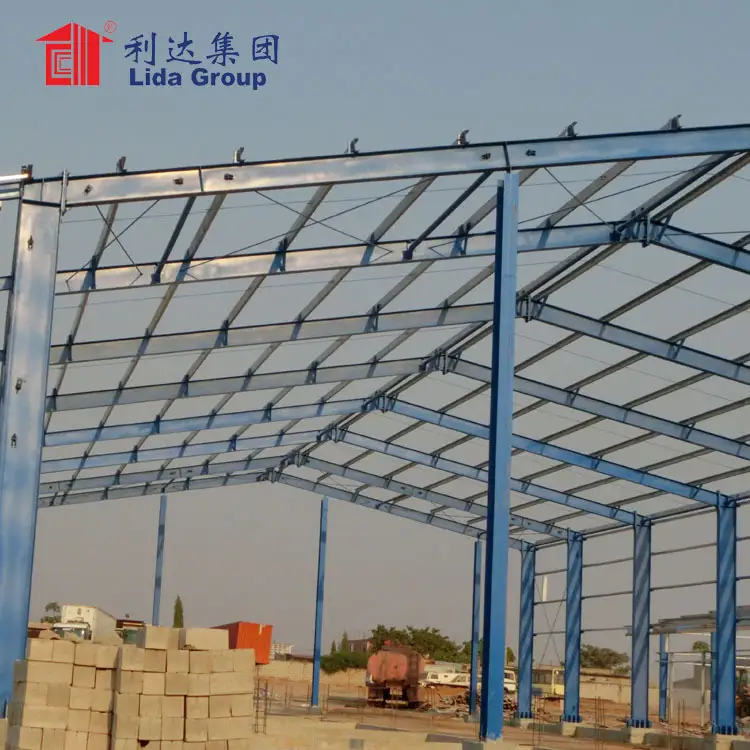

prefabricated steel structure warehouse metal
Description:
1, Prefabricated house is made of light steel as steel structure and sandwich panels for wall and roof
2,The sandwich panels can be polystyrene, polyurethane, rock wool, and fiber glass sandwich panels for insulation
3,The standard prefabricated house is made by 1.8m as one modular and components connected by bolts
4,The house can be assembled and disassembled more than 6 times and the service lifespan is more than 20 years
Characteristics:
1,Environment protective, no garbage caused
2,Doors, windows, and interior partitions can be flexibly fixed
3,Beautiful appearance, different colors for the wall and roof
4,Cost saving and transportation convenient
5,Anti-rust and normally more than 15 years using lifespan
6,Safe and stable, can stand 8 grade earthquake
Technical parameter of standard prefabricated house:
1,Wind resistance: grade 11 (wind speed≤111.5km/h)
2,Earthquake resistance: grade 7
3,Live load capacity of roofing: 0.5kN/m²
4,External and internal wall heat transmission coefficient: 0.35Kcal/m2hc
5,Second floor load capacity: 150kg/m²
6,Live load of corridor: 2.0kN/m²
7,We can design and produce the house according to customer’s request
prefabricated house
Main structure |
H-section steel |
Q345 steel H beam, Box column is also available |
Welding | Automatic Submerged Arc Welding | |
Rust removing | Shot blasting | |
surface processing | twice primer and twice finish Alkyd Paint or hot dip galvanized | |
High strength bolt | Grade 10.9 | |
Substructure | Angle brace | L50x4,Steel Q235,Process and painting |
Cross bracing | Dia.20 round bar,Steel Q235, process and pre-galvanized | |
Tie bar | Dia.89*3 round pipe,Steel Q235 Process and painting or pre-galvanized | |
Batter brace | Dia.12 round bar,Steel Q235 process and pre-galvanized | |
Ordinary bolt | Galvanized bolt | |
Roof | Purlin | C channel or Z channel,steel Q235, galvanized |
Roof panel | (50mm, 75mm, 100mm, 150mm) Sandwich panel or corrugated GI color steel sheet | |
Transparent skylight | 1.2mm FRP | |
Accessories | Sealant, self-tapping screw, etc. | |
Edge cover | Made of color steel sheet | |
Gutter | Made of steel sheet thickness 0.8mm, or PVC | |
Rinspout | PVC pipe | |
Wall | Purlin | C channel or Z channel, steel Q235, galvanized |
Wall panel | (50mm, 75mm, 100mm, 150mm) Sandwich panel or (0.4mm, 0.5mm, 0.6mm, 0.7mm) corrugated GI color steel sheet | |
Accessories | Sealant, self-tapping screw etc | |
Edge cover | Made of GI color steel | |
Ventilator | unpowered axial-flow ventilator or monitor roof | |
Door & window | Electric rolling door/sliding door, PVC/Alu. alloy window | |
Crane | With or without crane, ranging from 5 tons to 20 tons |
Q: Are you factory or trading company?
A: Our Lida Group have main factory named Weifang Henglida Steel structure Co., Ltd., which is in Weifang city. Qingdao Lida construction Facility Co., Ltd. is in Qingdao city. Shouguang Lida Prefab House Factory is in Shouguang city, all of them are in Shandong province.
Q: How about your production capacity?
A: Pre engineered steel structure building (warehouse/workshop/hangar/shed/high rise apartment): 50000 sqm monthly. Prefabricated house (portacabin/labor camp/site office): 100000 sqm monthly. Prefab affordable house (low cost family/residential/refugee): 4200 units monthly. Container house: 800 units monthly. Light steel villa: 10000 sqm monthly.
Q: How about your quality control?
A: We have got certificate ISO9001:2015, certificate CE EN 1090. Products processing through cutting, bending, welding, shot blasting, ultrasonic testing, packing, storing, loading to ensure no quality defects.
Q: Is third party inspection available?
A: SGS, BV, TUV, etc. are available, it is according to client requirement.
Q: How about your delivery time?
A: Generally within 30 days, it is according to order quantity, partial shipment is allowed for big order.
Q: What about the installation?
A: We'll provide the detailed installation drawing, supervisors guiding installation is available. We can do turnkey job for some kind of projects.
Q: How to ensure the product you supply is what we want exactly?
A: Before placing order, our sales and engineers team will provide you the suitable solution according to your requirements. Proposal drawing, Shop drawing, 3D drawing, Materials photos, Finished projects photos are available, which will help you understand the solution we provided deeply.
We welcome you to contact us for more information of
prefab house and look forward to working with you !
