Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
LIDA
Model Number:
LDS
Main frame:
Q355B,H/I section beam
Certificate:
CE EN1090,BV,SGS,ISO9001
Wall and roof:
sandwich panel or corrugated sheet
Max Life Time:
more than 50 years
Keywords:
metal buildings prefabricated
Supply Ability
Supply Ability:
500 Ton/Tons per Month

prefabricated work shop storage metal building

Product Description



I. Description:

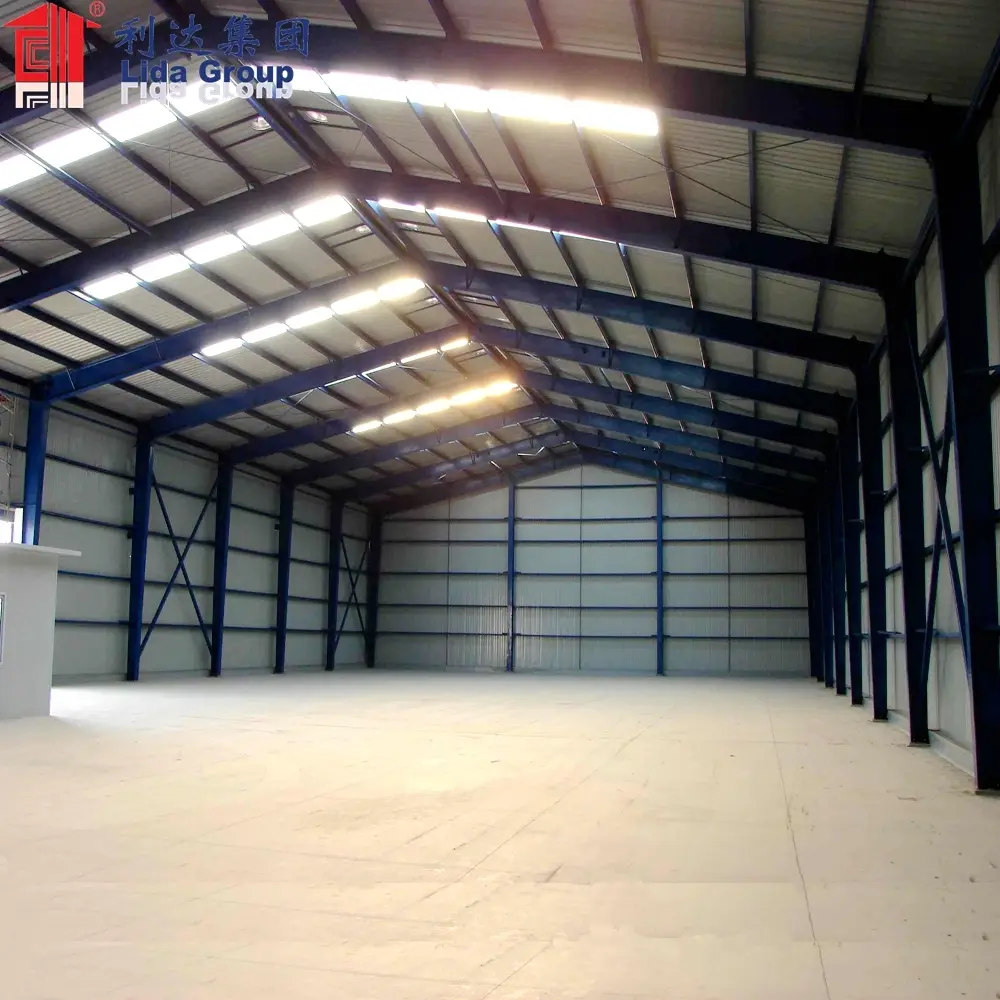

Lida Light steel structure building is a new type of building structure system, The building structure system is formed by the main steel framework through linking up H section, C section, Z section or U section steel components. Maintenance system uses different kinds of panels as wall and roof together with other components such as windows and doors.
Lida light steel structure building is widely used in large factories, warehouses, workshops, bridges, stadiums and other buildings.

II. Characteristics:

1. Wide span: single span or multiple spans, the max span clear distance is 36m, without middle columns.
2. Low cost: unit price range from USD35 to USD70/square meter FOB according to customer’s request.
3. Fast construction and easy in installation
4. Long term service life: more than 50 years.
5. Other characteristics: environmental protection, stable structure, earthquake resistance, water proofing, and energy saving.

III. Main parts of the steel structure building:

   Light steel structural

   Main Steel Frame

H section steel

Q345 steel 8mm/10mm

Galvanized or Painting

Cross Support

Φ20, Steel Q235,

Galvanized

Belt Bar

Φ89*3, Steel Q235

Galvanized

Small Brace

Φ12,Steel Q235

Galvanized

Ordinary BoltGalvanized Bolt

roof

Purlin

C160*60*2,Steel Q235,

 Galvanized

Out-roof Panel

Sandwich Panel or

corrugated steel sheet

FRP daylighting board

thickness 1.2mm

Accessories

Glass glue,

self-tapping screw etc.

Edge Cover

Made of color steel sheet

thickness 0.5mm

Gutter

Made of steel sheet

thickness 0.8mm

Rainspout

Φ110 PVC
wall

Purlin

C160*60*2.5,

Steel Q235, Galvanized

Wall

sandwich panel or

corrugated steel sheet

Accessories

Glass glue,

Self-tapping Screw etc.

Edge Cover

Made of color steel sheet

thickness 0.4mm

Axial fanAxial Fan
Door

sliding door or Rolling shutter door

WindowPVC or Aluminium alloy
CraneWith or without crane in 5 tons to 20 tons

Our excellent design team will design warehouse metal for you. If you give the following information, we will give you an satisfactory drawing:



1 Location (where will be built? ) _____country, area
2 Size: Length*width*height _____mm*_____mm*_____mm
3 wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s
4 snow load (max. Snow height) _____kn/m2, _____mm
5 anti-earthquake _____level
6 brickwall needed or not If yes, 1.2m high or 1.5m high
7 thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; If not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former.
8 door quantity & size _____units, _____(width)mm*_____(height)mm
9 window quanity & size _____units, _____(width)mm*_____(height)mm
10 crane needed or not If yes, _____units, max. Lifting weight____tons; Max. Lifting height _____m



 Lots of customers have visited our factory and give us high appraise.

And you are warmly welcomed to vist our factory!

Project Show



Loading



Company Information

  We Weifang Henglida Steel Structure Co.,Ltd.( Lida Group)  is one of the largest manufacturers of the prefabricated house, Flat Pack container house, steel villas, and steel structure warehouse in China. We have been doing well in this field for more than 20 years, and we have exported our products to more than 110 countries as well as our domestic market  with  ISO9001, CE ,BVand SGS approval.



Sustainability plays a key role in the drive and the recent boom behind this product, there are numerous accompanying benefits that make this trend the housing solution of the future. This product can be patined with different colors. This product is great for tight spaces or for allowing additional storage. This means that one can have extra storage space to store goods and items. This product can be patined with different colors.
