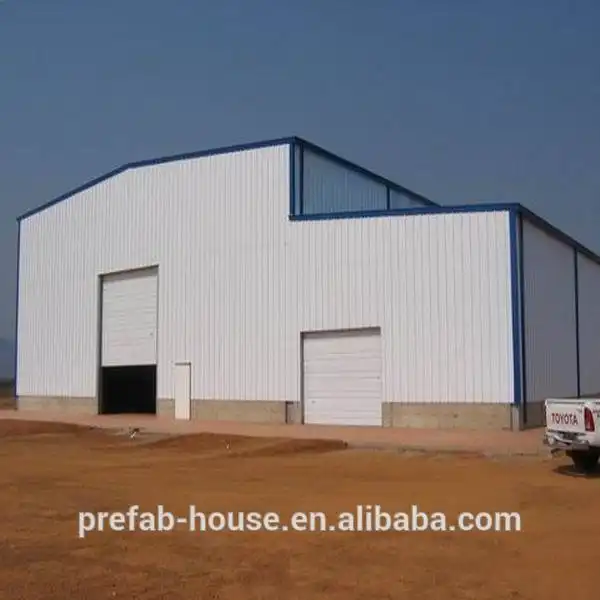

steel structure prefab ware house

这里可以自定义设置
steel structure prefab ware house
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
Lida
Model Number:
prefab house
Material:
Steel, steel
Use:
Hotel, House, Kiosk,Booth, Office, Sentry Box,Guard House, Shop, Villa, Warehouse, Workshop,Plant, Carport, Hotel, House, Office, Sentry Box,Guard House, Toilet, Villa
Place of origin:
Shandong, China (Mainland)
Brand name:
Lida
Model number:
Lida--p
Supply Ability
Supply Ability:
10000 Square Meter/Square Meters per Quarter



Product Description



Brief Introduction

Light steel structure building is a new type of building structure system,which is formed by the main steel framework linking up H section,Z section,C section or U section steel components,roof and walls using a variety of panels and other components such windows,doors,cranes,etc.Light steel structure building is widely used as warehouses,workshops,large factories...etc.

Characteristics

1.Wide span: single span or multiple spans, the max span is 36m without middle column.

2.Low cost: unit price range from USD 30/m2 to USD 60/m2 according to customers request.

3.Fast construction and easy installation.

4. Long using lifespan: up to 50 years.

5.Others: environmental protection, stable structure, earthquake resistance, water proofing, and energy conserving.



Specification



Materialspecification
LengthAs customer's requirement
Width As customer's requirement
Height As customer's requirement
ColumnH shaped,Q235/Q345
Beam H shaped,Q235/Q345
PurlineC/Z shaped,Q235/Q345
BraceRound bar,Q235
Knee braceSteel angle,Q235
Tie barSteel round tube,Q235
Roof panel

single steel sheet /sandwich panel

Wall panel

single steel sheet /sandwich panel

Door

sandwich panel door/sliding door/rolling door

Window

PVC window/Aluminium frame,4/5mm thickness glass

Gutter

0.8mm steel sheet/1.2mm steel sheet/3mm steel sheet

Rain Pipe

DN110mm PVC rain pipe





Our Services



1. Professional design and engineering team: Full solution for steel structure design.

2. Procurement and Manufacture for all material for prefabricated building. We have a professional procurement team to make sure all the materials are with good quality. And our factory operation under ISO/CE/SGS standard, to make sure the fabrication works with high technology.

3. Site management & Installation supervision, We could send our engineers to help for the installation supervision, you just need to prepare a team which know normal construction works will be O.K.





Company Information

  Established in 1995,Lida Group-Weifang Henglida Steel Structure is one of the biggest manufacturer of prefabricated building in China.We have been awarded ISO9001-2000,CE and SGS certificates.Our daily capacity can reach 5,000 square meters and this is how we manage it.

750 employees,among which we have 50 engineers and 200 workers in charge of supervising overseas projects.

73,000 square meters of factory space.

3 production lines for our prefabricated house series.

3 production lines for coantier house series.

2 production lines for our steel structure warehouse/workshop series.

1 production line for our light steel villa series overseas branch office in Saudi Arabia,Italy,Russia and Angola.



 Production Equipment









Installation photo





Finished work











Packaging & Shipping

Company Certification











Lida Group carries out the production in strict accordance with national quality standards. Besides, we have a quality inspection team to control each production link. All this guarantees the superior quality of prefab house. Lida Group has advanced technology to process materials. Besides, we have professional installation team and design team. All this ensures good durability and long service life of prefab house.
